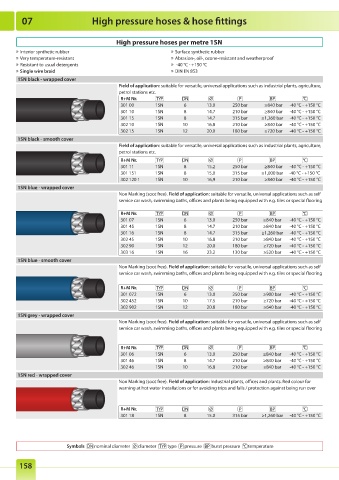

Page 159 - RM_2022

07 High pressure hoses & hose fittings

High pressure hoses per metre 1SN
» Interior synthetic rubber » Surface synthetic rubber
» Very temperature-resistant » Abrasion-, oil-, ozone-resistant and weatherproof
» Resistant to usual detergents » -40 °C - +150 °C
» Single wire braid » DIN EN 853
1SN black - wrapped cover
Field of application: suitable for versatile, universal applications such as industrial plants, agriculture,
petrol stations etc.
R+M Nr.
301 00 1SN 6 13.0 250 bar ≥840 bar -40 °C - +150 °C
301 10 1SN 8 14.7 210 bar ≥840 bar -40 °C - +150 °C
301 15 1SN 8 14.7 315 bar ≥1,260 bar -40 °C - +150 °C
302 10 1SN 10 16.8 210 bar ≥840 bar -40 °C - +150 °C
302 15 1SN 12 20.0 180 bar ≥720 bar -40 °C - +150 °C
1SN black - smooth cover
Field of application: suitable for versatile, universal applications such as industrial plants, agriculture,
petrol stations etc.
R+M Nr.
301 11 1SN 8 15,2 250 bar ≥840 bar -40 °C - +150 °C
301 151 1SN 8 15,0 315 bar ≥1,000 bar -40 °C - +150 °C
302 120 1 1SN 10 16,9 210 bar ≥840 bar -40 °C - +150 °C
1SN blue - wrapped cover
Non Marking (soot free). Field of application: suitable for versatile, universal applications such as self
service car wash, swimming baths, offices and plants being equipped with e.g. tiles or special flooring
R+M Nr.
301 07 1SN 6 13.0 250 bar ≥840 bar -40 °C - +150 °C
301 45 1SN 8 14.7 210 bar ≥840 bar -40 °C - +150 °C
301 16 1SN 8 14.7 315 bar ≥1,260 bar -40 °C - +150 °C
302 45 1SN 10 16.8 210 bar ≥840 bar -40 °C - +150 °C
302 90 1SN 12 20.0 180 bar ≥720 bar -40 °C - +150 °C
303 16 1SN 16 23.2 130 bar ≥520 bar -40 °C - +150 °C
1SN blue - smooth cover
Non Marking (soot free). Field of application: suitable for versatile, universal applications such as self
service car wash, swimming baths, offices and plants being equipped with e.g. tiles or special flooring

R+M Nr.
301 072 1SN 6 13.0 250 bar ≥900 bar -40 °C - +150 °C
302 452 1SN 10 17.5 210 bar ≥720 bar -40 °C - +150 °C
302 902 1SN 12 20.8 180 bar ≥640 bar -40 °C - +150 °C
1SN grey - wrapped cover
Non Marking (soot free). Field of application: suitable for versatile, universal applications such as self
service car wash, swimming baths, offices and plants being equipped with e.g. tiles or special flooring

R+M Nr.
301 06 1SN 6 13.0 250 bar ≥840 bar -40 °C - +150 °C
301 46 1SN 8 14.7 210 bar ≥840 bar -40 °C - +150 °C
302 46 1SN 10 16.8 210 bar ≥840 bar -40 °C - +150 °C
1SN red - wrapped cover
Non Marking (soot free). Field of application: industrial plants, offices and plants. Red colour for
warning at hot water installations or for avoiding trips and falls / protection against being run over

R+M Nr.
301 18 1SN 8 15.0 315 bar ≥1,260 bar -40 °C - +150 °C

Symbols nominal diameter diameter type pressure burst pressure temperature
