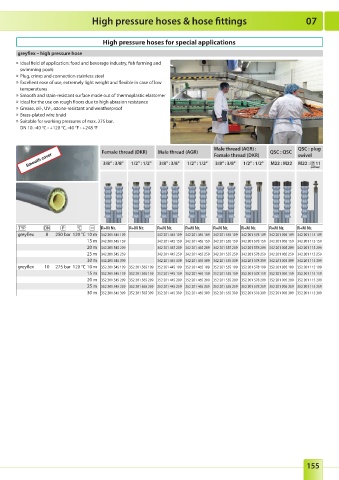

High pressure hoses & hose fittings 07

High pressure hoses for special applications
greyflex – high pressure hose
» Ideal field of application: food and beverage industry, fish farming and
swimming pools
» Plug, crimp and connection stainless steel
» Excellent ease of use, extremely light weight and flexible in case of low
temperatures
» Smooth and stain-resistant surface made out of thermoplastic elastomer
» Ideal for the use on rough floors due to high abrasion resistance
» Grease, oil-, UV-, ozone-resistant and weatherproof
» Brass-plated wire braid
» Suitable for working pressures of max. 275 bar.
DN 10. -40 °C - +120 °C, -40 °F - +248 °F

Male thread (AGR) : QSC : plug
Female thread (DKR) Male thread (AGR) Female thread (DKR) QSC : QSC swivel
Smooth cover 3/8" : 3/8" 1/2" : 1/2" 3/8" : 3/8" 1/2" : 1/2" 3/8" : 3/8" 1/2" : 1/2" M22 : M22 M22 : 11
swivel

R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
greyflex 8 250 bar 120 °C 10 m 342 201 545 109 342 201 445 109 342 201 465 109 342 201 555 109 342 201 578 109 342 201 005 109 342 201 115 109
15 m 342 201 545 159 342 201 445 159 342 201 465 159 342 201 555 159 342 201 578 159 342 201 005 159 342 201 115 159
20 m 342 201 545 209 342 201 445 209 342 201 465 209 342 201 555 209 342 201 578 209 342 201 005 209 342 201 115 209
25 m 342 201 545 259 342 201 445 259 342 201 465 259 342 201 555 259 342 201 578 259 342 201 005 259 342 201 115 259
30 m 342 201 545 309 342 201 445 309 342 201 465 309 342 201 555 309 342 201 578 309 342 201 005 309 342 201 115 309
greyflex 10 275 bar 120 °C 10 m 352 201 545 109 352 201 565 109 352 201 445 109 352 201 465 109 352 201 555 109 352 201 578 109 352 201 005 109 352 201 115 109
15 m 352 201 545 159 352 201 565 159 352 201 445 159 352 201 465 159 352 201 555 159 352 201 578 159 352 201 005 159 352 201 115 159
20 m 352 201 545 209 352 201 565 209 352 201 445 209 352 201 465 209 352 201 555 209 352 201 578 209 352 201 005 209 352 201 115 209
25 m 352 201 545 259 352 201 565 259 352 201 445 259 352 201 465 259 352 201 555 259 352 201 578 259 352 201 005 259 352 201 115 259
30 m 352 201 545 309 352 201 565 309 352 201 445 309 352 201 465 309 352 201 555 309 352 201 578 309 352 201 005 309 352 201 115 309

155
