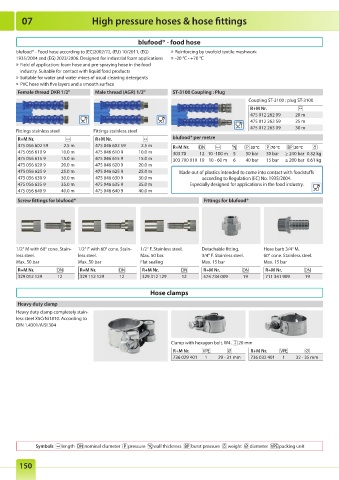

07 High pressure hoses & hose fittings

blufood® - food hose
blufood® - Food hose according to (EC)2002/72, (EU) 10/2011, (EG) » Reinforcing by twofold textile meshwork
1935/2004 and (EG) 2023/2006. Designed for industrial foam applications » -20 °C - +70 °C
» Field of application: foam hose and pre-spraying hose in the food
industry. Suitable for contact with liquid food products
» Suitable for water and water mixes of usual cleaning detergents
» PVC hose with five layers and a smooth surface
Female thread DKR 1/2" Male thread (AGR) 1/2" ST-3100 Coupling : Plug
Coupling ST-3100 : plug ST-3100
R+M Nr.
475 012 262 09 20 m
475 012 262 59 25 m
475 012 263 09 30 m
Fittings stainless steel Fittings stainless steel
R+M Nr. R+M Nr. blufood® per metre
475 056 602 59 2.5 m 475 046 602 59 2.5 m R+M Nr. 20 °C 70 °C 20 °C
475 056 610 9 10.0 m 475 046 610 9 10.0 m 303 70 12 10 -100 m 5 50 bar 30 bar ≥ 240 bar 0.32 kg
475 056 615 9 15.0 m 475 046 615 9 15.0 m 303 700 019 19 10 - 60 m 6 40 bar 15 bar ≥ 200 bar 0.61 kg
475 056 620 9 20.0 m 475 046 620 9 20.0 m
475 056 625 9 25.0 m 475 046 625 9 25.0 m Made out of plastics intended to come into contact with foodstuffs
475 056 630 9 30.0 m 475 046 630 9 30.0 m according to Regulation (EC) No. 1935/2004.
475 056 635 9 35.0 m 475 046 635 9 35.0 m Especially designed for applications in the food industry.
475 056 640 9 40.0 m 475 046 640 9 40.0 m

or bluf
F
ittings f
ood®
Screw fittings for blufood® Fittings for blufood®

1/2" M with 60° cone. Stain- 1/2" F with 60° cone. Stain- 1/2" F. Stainless steel. Detachable fitting. Hose barb 3/4" M.
less steel. less steel. Max. 50 bar. 3/4" F. Stainless steel. 60° cone. Stainless steel.
Max. 50 bar Max. 50 bar Flat sealing Max. 15 bar Max. 15 bar
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
329 012 129 12 329 112 129 12 329 312 129 12 574 734 009 19 711 341 909 19

Hose clamps
Heavy duty clamp
Heavy duty clamp completely stain-
less steel X5CrNi1810. According to
DIN 1.4301/AISI 304

Clamp with hexagon bolt. W4. 20 mm
R+M Nr. R+M Nr.
736 029 401 1 29 - 31 mm 736 032 401 1 32 - 35 mm

Symbols length nominal diameter pressure wall thickness burst pressure weight diameter packing unit
