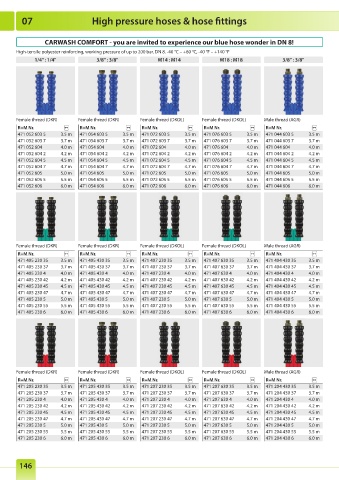

Page 147 - RM_2022

07 High pressure hoses & hose fittings

CARWASH COMFORT - you are invited to experience our blue hose wonder in DN 8!

High-tensile polyester reinforcing, working pressure of up to 200 bar. DN 8. -40 °C – +60 °C, -40 °F – +140 °F
1/4" : 1/4" 3/8" : 3/8" M14 : M14 M18 : M18 3/8" : 3/8"

Female thread (DKR) Female thread (DKR) Female thread (DKOL) Female thread (DKOL) Male thread (AGR)
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
471 052 603 5 3.5 m 471 054 603 5 3.5 m 471 072 603 5 3.5 m 471 076 603 5 3.5 m 471 044 603 5 3.5 m
471 052 603 7 3.7 m 471 054 603 7 3.7 m 471 072 603 7 3.7 m 471 076 603 7 3.7 m 471 044 603 7 3.7 m
471 052 604 4.0 m 471 054 604 4.0 m 471 072 604 4.0 m 471 076 604 4.0 m 471 044 604 4.0 m
471 052 604 2 4.2 m 471 054 604 2 4.2 m 471 072 604 2 4.2 m 471 076 604 2 4.2 m 471 044 604 2 4.2 m
471 052 604 5 4.5 m 471 054 604 5 4.5 m 471 072 604 5 4.5 m 471 076 604 5 4.5 m 471 044 604 5 4.5 m
471 052 604 7 4.7 m 471 054 604 7 4.7 m 471 072 604 7 4.7 m 471 076 604 7 4.7 m 471 044 604 7 4.7 m
471 052 605 5.0 m 471 054 605 5.0 m 471 072 605 5.0 m 471 076 605 5.0 m 471 044 605 5.0 m
471 052 605 5 5.5 m 471 054 605 5 5.5 m 471 072 605 5 5.5 m 471 076 605 5 5.5 m 471 044 605 5 5.5 m
471 052 606 6.0 m 471 054 606 6.0 m 471 072 606 6.0 m 471 076 606 6.0 m 471 044 606 6.0 m

Female thread (DKR) Female thread (DKR) Female thread (DKOL) Female thread (DKOL) Male thread (AGR)
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
471 405 230 35 3.5 m 471 405 430 35 3.5 m 471 407 230 35 3.5 m 471 407 630 35 3.5 m 471 404 430 35 3.5 m
471 405 230 37 3.7 m 471 405 430 37 3.7 m 471 407 230 37 3.7 m 471 407 630 37 3.7 m 471 404 430 37 3.7 m
471 405 230 4 4.0 m 471 405 430 4 4.0 m 471 407 230 4 4.0 m 471 407 630 4 4.0 m 471 404 430 4 4.0 m
471 405 230 42 4.2 m 471 405 430 42 4.2 m 471 407 230 42 4.2 m 471 407 630 42 4.2 m 471 404 430 42 4.2 m
471 405 230 45 4.5 m 471 405 430 45 4.5 m 471 407 230 45 4.5 m 471 407 630 45 4.5 m 471 404 430 45 4.5 m
471 405 230 47 4.7 m 471 405 430 47 4.7 m 471 407 230 47 4.7 m 471 407 630 47 4.7 m 471 404 430 47 4.7 m
471 405 230 5 5.0 m 471 405 430 5 5.0 m 471 407 230 5 5.0 m 471 407 630 5 5.0 m 471 404 430 5 5.0 m
471 405 230 55 5.5 m 471 405 430 55 5.5 m 471 407 230 55 5.5 m 471 407 630 55 5.5 m 471 404 430 55 5.5 m
471 405 230 6 6.0 m 471 405 430 6 6.0 m 471 407 230 6 6.0 m 471 407 630 6 6.0 m 471 404 430 6 6.0 m

Female thread (DKR) Female thread (DKR) Female thread (DKOL) Female thread (DKOL) Male thread (AGR)
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
471 205 230 35 3.5 m 471 205 430 35 3.5 m 471 207 230 35 3.5 m 471 207 630 35 3.5 m 471 204 430 35 3.5 m
471 205 230 37 3.7 m 471 205 430 37 3.7 m 471 207 230 37 3.7 m 471 207 630 37 3.7 m 471 204 430 37 3.7 m
471 205 230 4 4.0 m 471 205 430 4 4.0 m 471 207 230 4 4.0 m 471 207 630 4 4.0 m 471 204 430 4 4.0 m
471 205 230 42 4.2 m 471 205 430 42 4.2 m 471 207 230 42 4.2 m 471 207 630 42 4.2 m 471 204 430 42 4.2 m
471 205 230 45 4.5 m 471 205 430 45 4.5 m 471 207 230 45 4.5 m 471 207 630 45 4.5 m 471 204 430 45 4.5 m
471 205 230 47 4.7 m 471 205 430 47 4.7 m 471 207 230 47 4.7 m 471 207 630 47 4.7 m 471 204 430 47 4.7 m
471 205 230 5 5.0 m 471 205 430 5 5.0 m 471 207 230 5 5.0 m 471 207 630 5 5.0 m 471 204 430 5 5.0 m
471 205 230 55 5.5 m 471 205 430 55 5.5 m 471 207 230 55 5.5 m 471 207 630 55 5.5 m 471 204 430 55 5.5 m
471 205 230 6 6.0 m 471 205 430 6 6.0 m 471 207 230 6 6.0 m 471 207 630 6 6.0 m 471 204 430 6 6.0 m
