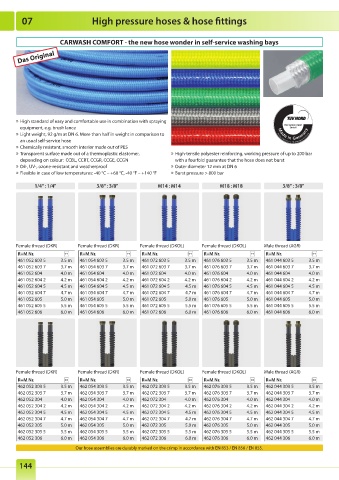

Page 145 - RM_2022

07 High pressure hoses & hose fittings

CARWASH COMFORT - the new hose wonder in self-service washing bays
Das Original
The original

» High standard of easy and comfortable use in combination with spraying
equipment, e.g. brush lance
» Light weight, 92 g/m at DN 6. More than half in weight in comparison to
an usual self-service hose
» Chemically resistant, smooth interior made out of PES
» Transparent surface made out of a thermoplastic elastomer, » High-tensile polyester reinforcing, working pressure of up to 200 bar
depending on colour: CCBL, CCRT, CCGR, CCGE, CCGN with a fourfold guarantee that the hose does not burst
» Oil-, UV-, ozone-resistant and weatherproof » Outer diameter 12 mm at DN 6
» Flexible in case of low temperatures: -40 °C – +60 °C, -40 °F – +140 °F » Burst pressure > 800 bar
1/4" : 1/4" 3/8" : 3/8" M14 : M14 M18 : M18 3/8" : 3/8"

Female thread (DKR) Female thread (DKR) Female thread (DKOL) Female thread (DKOL) Male thread (AGR)
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
461 052 603 5 3.5 m 461 054 603 5 3.5 m 461 072 603 5 3.5 m 461 076 603 5 3.5 m 461 044 603 5 3.5 m
461 052 603 7 3.7 m 461 054 603 7 3.7 m 461 072 603 7 3.7 m 461 076 603 7 3.7 m 461 044 603 7 3.7 m
461 052 604 4.0 m 461 054 604 4.0 m 461 072 604 4.0 m 461 076 604 4.0 m 461 044 604 4.0 m
461 052 604 2 4.2 m 461 054 604 2 4.2 m 461 072 604 2 4.2 m 461 076 604 2 4.2 m 461 044 604 2 4.2 m
461 052 604 5 4.5 m 461 054 604 5 4.5 m 461 072 604 5 4.5 m 461 076 604 5 4.5 m 461 044 604 5 4.5 m
461 052 604 7 4.7 m 461 054 604 7 4.7 m 461 072 604 7 4.7 m 461 076 604 7 4.7 m 461 044 604 7 4.7 m
461 052 605 5.0 m 461 054 605 5.0 m 461 072 605 5.0 m 461 076 605 5.0 m 461 044 605 5.0 m
461 052 605 5 5.5 m 461 054 605 5 5.5 m 461 072 605 5 5.5 m 461 076 605 5 5.5 m 461 044 605 5 5.5 m
461 052 606 6.0 m 461 054 606 6.0 m 461 072 606 6.0 m 461 076 606 6.0 m 461 044 606 6.0 m

Female thread (DKR) Female thread (DKR) Female thread (DKOL) Female thread (DKOL) Male thread (AGR)
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
462 052 303 5 3.5 m 462 054 303 5 3.5 m 462 072 303 5 3.5 m 462 076 303 5 3.5 m 462 044 303 5 3.5 m
462 052 303 7 3.7 m 462 054 303 7 3.7 m 462 072 303 7 3.7 m 462 076 303 7 3.7 m 462 044 303 7 3.7 m
462 052 304 4.0 m 462 054 304 4.0 m 462 072 304 4.0 m 462 076 304 4.0 m 462 044 304 4.0 m
462 052 304 2 4.2 m 462 054 304 2 4.2 m 462 072 304 2 4.2 m 462 076 304 2 4.2 m 462 044 304 2 4.2 m
462 052 304 5 4.5 m 462 054 304 5 4.5 m 462 072 304 5 4.5 m 462 076 304 5 4.5 m 462 044 304 5 4.5 m
462 052 304 7 4.7 m 462 054 304 7 4.7 m 462 072 304 7 4.7 m 462 076 304 7 4.7 m 462 044 304 7 4.7 m
462 052 305 5.0 m 462 054 305 5.0 m 462 072 305 5.0 m 462 076 305 5.0 m 462 044 305 5.0 m
462 052 305 5 5.5 m 462 054 305 5 5.5 m 462 072 305 5 5.5 m 462 076 305 5 5.5 m 462 044 305 5 5.5 m
462 052 306 6.0 m 462 054 306 6.0 m 462 072 306 6.0 m 462 076 306 6.0 m 462 044 306 6.0 m
Our hose assemblies are durably marked on the crimp in accordance with EN 853 / EN 856 / EN 855.

144
