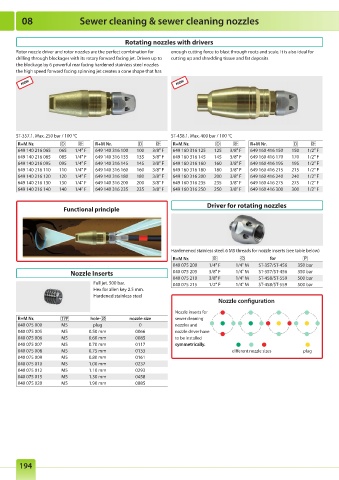

08 Sewer cleaning & sewer cleaning nozzles

Rotating nozzles with drivers
Rotor nozzle driver and rotor nozzles are the perfect combination for enough cutting force to blast through roots and scale. It is also ideal for
drilling through blockages with its rotary forward facing jet. Driven up to cutting up and shredding tissue and fat deposits
the blockage by 6 powerful rear facing hardened stainless steel nozzles
the high speed forward facing spinning jet creates a cone shape that has
new new

ST-357.1. Max. 250 bar / 100 °C ST-458.1. Max. 400 bar / 100 °C
R+M Nr. R+M Nr. R+M Nr. R+M Nr.
649 140 216 065 065 1/4" F 649 140 316 100 100 3/8" F 649 160 316 125 125 3/8" F 649 160 416 150 150 1/2" F
649 140 216 085 085 1/4" F 649 140 316 135 135 3/8" F 649 160 316 145 145 3/8" F 649 160 416 170 170 1/2" F
649 140 216 095 095 1/4" F 649 140 316 145 145 3/8" F 649 160 316 160 160 3/8" F 649 160 416 195 195 1/2" F
649 140 216 110 110 1/4" F 649 140 316 160 160 3/8" F 649 160 316 180 180 3/8" F 649 160 416 215 215 1/2" F
649 140 216 120 120 1/4" F 649 140 316 180 180 3/8" F 649 160 316 200 200 3/8" F 649 160 416 240 240 1/2" F
649 140 216 130 130 1/4" F 649 140 316 200 200 3/8" F 649 160 316 235 235 3/8" F 649 160 416 275 275 1/2" F
649 140 216 140 140 1/4" F 649 140 316 235 235 3/8" F 649 160 316 250 250 3/8" F 649 160 416 300 300 1/2" F

Driver for rotating nozzles
Functional principle

Hardenened stainless steel. 6 M5 threads for nozzle inserts (see table below)
R+M Nr. for
040 075 200 1/4" F 1/4" M ST-357/ST-456 350 bar
Nozzle Inserts 040 075 205 3/8" F 1/4" M ST-357/ST-456 350 bar
040 075 210 3/8" F 1/4" M ST-458/ST-559 500 bar
Full jet. 500 bar. 040 075 215 1/2" F 1/4" M ST-458/ST-559 500 bar
Hex for allen key 2.5 mm.
Hardened stainless steel
Nozzle configuration

Nozzle inserts for
R+M Nr. hole- nozzle size sewer cleaning
040 075 000 M5 plug 0 nozzles and
040 075 005 M5 0.50 mm 0066 nozzle driver have
040 075 006 M5 0.60 mm 0085 to be installed
040 075 007 M5 0.70 mm 0117 symmetrically.
040 075 008 M5 0.75 mm 0133 different nozzle sizes plug
040 075 009 M5 0.80 mm 0161
040 075 010 M5 1.00 mm 0237
040 075 012 M5 1.10 mm 0293
040 075 015 M5 1.30 mm 0458
040 075 020 M5 1.90 mm 0885
