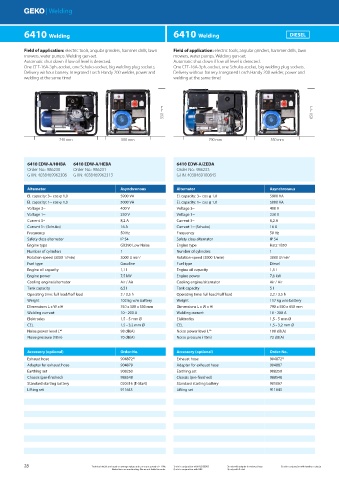

Page 28 - Geko 01_2020

| Welding

6410 Welding 6410 Welding DIESEL

Field of application: electric tools, angular grinders, hammer drills, lawn Field of application: electric tools, angular grinders, hammer drills, lawn
mowers, water pumps. Welding gen-set. mowers, water pumps. Welding gen-set.
Automatic shut down if low oil level is detected. Automatic shut down if low oil level is detected.
One CEE-16A-3ph.-socket, one Schuko-socket, big welding plug sockets. One CEE-16A-3ph.-socket, one Schuko-socket, big welding plug sockets.
Delivery without battery. Integrated Lorch Handy 200 welder, power and Delivery without battery. Integrated Lorch Handy 200 welder, power and
welding at the same time! welding at the same time!

530 mm 650 mm

740 mm 500 mm 790 mm 550 mm

6410 EDW-A/HHBA 6410 EDW-A/HEBA 6410 EDW-A/ZEDA
Order-No.: 986230 Order-No.: 986231 Order-No.: 986233
GTIN: 4038469962306 GTIN: 4038469962313 GTIN: 4038469100845

Alternator Asynchronous Alternator Asynchronous
El. capacity: 3~ cos φ 1,0 5900 VA El. capacity: 3~ cos φ 1,0 5900 VA
El. capacity: 1~ cos φ 1,0 5000 VA El. capacity: 1~ cos φ 1,0 5000 VA
Voltage 3~ 400 V Voltage 3~ 400 V
Voltage 1~ 230 V Voltage 1~ 230 V
Current 3~ 8,2 A Current 3~ 8,2 A
Current 1~ (Schuko) 16 A Current 1~ (Schuko) 16 A
Frequency 50 Hz Frequency 50 Hz
Safety class alternator IP 54 Safety class alternator IP 54
Engine type GX390 Low Noise Engine type Hatz 1B50
Number of cylinders 1 Number of cylinders 1
Rotation-speed (3000 1/min) 3000 U min -1 Rotation-speed (3000 1/min) 3000 U min -1
Fuel type Gasoline Fuel type Diesel
Engine oil capacity 1,1 l Engine oil capacity 1,5 l
Engine power 7,5 kW Engine power 7,6 kW
Cooling engine/alternator Air / Air Cooling engine/alternator Air / Air
Tank capacity 6,5 l Tank capacity 5 l
Operating time: full load/half load 2 / 3,5 h Operating time: full load/half load 2,2 / 3,5 h
Weight 102 kg w/o battery Weight 117 kg w/o battery
Dimensions L x W x H 740 x 500 x 530 mm Dimensions L x W x H 790 x 550 x 650 mm
Welding current 10 - 200 A Welding current 10 - 200 A
Elektrodes 1,5 - 5 mm Ø Elektrodes 1,5 - 5 mm Ø
CEL 1,5 - 3,2 mm Ø CEL 1,5 - 3,2 mm Ø
Noise power level L WA 98 dB(A) Noise power level L WA 100 dB(A)
Noise pressure (10m) 70 dB(A) Noise pressure (10m) 72 dB(A)

Accessory (optional) Order-No. Accessory (optional) Order-No.
Exhaust hose 904872 3) Exhaust hose 904872 3)
Adapter for exhaust hose 904879 Adapter for exhaust hose 904887
Earthing set 908250 Earthing set 908250
Chassis (pre-finished) 988548 Chassis (pre-finished) 988548
Standard starting battery 020316 (E-Start) Standard starting battery 901067
Lifting set 911643 Lifting set 911643

28 Technical details are based on average values and can vary a spread of ± 10%. 1) n/a in cunjunction with BLC/GE803 3) only with adapter for exhaust hose 5) n/a in conjunction with handles or chassis
Illustrations are non-binding. We are not liable for errata. 2) n/a in conjunction with UBC 4) only with E-start
