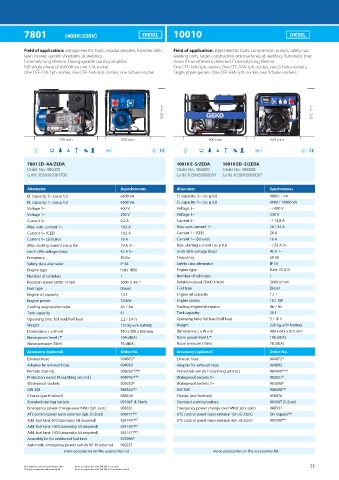

7801 (400V/230V) DIESEL 10010 DIESEL

Field of application: average electric tools, angular grinders, hammer drills, Field of application: larger electric tools, compressors, pumps, safety, gas
lawn mower, garden shredders, el. welding. welding units, larger construction-site machines, el. welding. Automatic shut
Extremely long lifetime. Disengageable starting amplifier. down if low oil level is detected. Extremely long lifetime.
Full single phase of 4500 W via one 32A-socket. One CEE-16A-3ph.-socket, One CEE-32A-1ph.-socket, two Schuko-sockets.
One CEE-32A-1ph.-socket, one CEE-16A-3ph.-socket, one Schuko-socket Single phase genset: One CEE-63A-1ph.-socket, two Schuko-sockets.

530 mm 615 mm

740 mm 500 mm 900 mm 645 mm

7801 ED–AA/ZEDA 10010 E–S/ZEDA 10010 ED–S/ZEDA
Order-No.: 986470 Order-No.: 986809 Order-No.: 986808
GTIN: 4038469964706 GTIN: 4038469968094 GTIN: 4038469968087

Alternator Asynchronous Alternator Synchronous
El. capacity: 3~ cos φ 1,0 6400 VA El. capacity: 3~ cos φ 0,8 9800 / - VA
El. capacity: 1~ cos φ 1,0 4500 VA El. capacity: 1~ cos φ 0,8 6000 / 10000 VA
Voltage 3~ 400 V Voltage 3~ - / 400 V
Voltage 1~ 230 V Voltage 1~ 230 V
Current 3~ 9,2 A Current 3~ - / 13,8 A
Max. sum. current 1~ 19,5 A Max. sum. current 1~ 26 / 34 A
Current 1~ (CEE) 19,5 A Current 1~ (CEE) 26 A
Current 1~ (Schuko) 16 A Current 1~ (Schuko) 16 A
Max. starting current cos φ 0,6 19 A 3~ Max. starting current cos φ 0,6 - / 25 A 3~
(with 20% voltage drop) 42 A 1~ (with 20% voltage drop) 45 A 1~
Frequency 50 Hz Frequency 50 Hz
Safety class alternator IP 54 Safety class alternator IP 54
Engine type Hatz 1B50 Engine type Hatz 1D 81S
Number of cylinders 1 Number of cylinders 1
Rotation-speed (3000 1/min) 3000 U min -1 Rotation-speed (3000 1/min) 3000 U min -1
Fuel type Diesel Fuel type Diesel
Engine oil capacity 1,5 l Engine oil capacity 1,1 l
Engine power 7,6 kW Engine power 10,1 kW
Cooling engine/alternator Air / Air Cooling engine/alternator Air / Air
Tank capacity 5 l Tank capacity 20 l
Operating time: full load/half load 2,2 / 3,4 h Operating time: full load/half load 5 / 10 h
Weight 132 kg w/o battery Weight 220 kg with battery
Dimensions L x W x H 740 x 500 x 530 mm Dimensions L x W x H 900 x 645 x 615 mm
Noise power level L WA 104 dB(A) Noise power level L WA 106 dB(A)
Noise pressure (10m) 76 dB(A) Noise pressure (10m) 78 dB(A)
Accessory (optional) Order-No. Accessory (optional) Order-No.
Exhaust hose 904872 3) Exhaust hose 904872 3)
Adapter for exhaust hose 904762 Adapter for exhaust hose 904892
Remote starting 908252 1)2)4)6) Protection switch FI (earthing set incl.) 904400 1)6)8)
Protection switch FI (earthing set incl.) 904746 1)6)8) Waterproof sockets 1~ 903051 6)
Waterproof sockets 903052 6) Waterproof sockets 3~ 903096 6)
GW 308 988534 1)6) GW 308 988498 1)6)
Chassis (pre-finished) 988548 Chassis (pre-finished) 016976
Standard starting battery 901067 (E-Start) Standard starting battery 901067 (E-Start)
Emergency power change-over MNU 3ph. (ext.) 988331 Emergency power change-over MNU 3ph. (ext.) 988331
ATS control panel nano external 3ph. (E-Start) 904771 4)6) ATS control panel nano external 1ph. (E-Start) On request 4)6)
Add. fuel tank 50 l (assembly kit required) 924149 5)6)7) ATS control panel nano external 3ph. (E-Start) 904780 4)6)
Add. fuel tank 100 l (assembly kit required) 924150 5)6)7)
Add. fuel tank 150 l (assembly kit required) 924151 5)6)7)
Assembly kit for additional fuel tank 923996 6)
Automatic emergency power switch NS 10 external 988227
more accessories on the accessories list more accessories on the accessories list

6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 23
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
