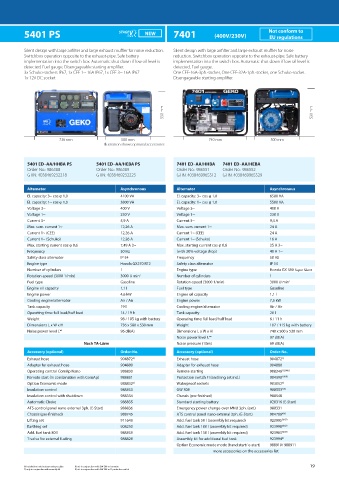

Page 19 - Geko 01_2020

5401 PS NEW 7401 (400V/230V) Not conform to
EU regulations

Silent design with large airfilter and large exhaust muffler for noise reduction. Silent design with large airfilter and large exhaust muffler for noise
Switchbox operation opposite to the exhaust-pipe. Safe battery reduction. Switchbox operation opposite to the exhaust-pipe. Safe battery
implementation into the switch box. Automatic shut down if low oil level is implementation into the switch box. Automatic shut down if low oil level is
detected. Fuel gauge. Disengageable starting amplifier. detected. Fuel gauge.
3x Schuko-sockets IP67, 1x CEE 1~ 16A IP67, 1x CEE 3~ 16A IP67 One CEE-16A-3ph.-socket, One CEE-32A-1ph.-socket, one Schuko-socket.
1x 12V DC socket Disengageable starting amplifier.

530 mm 530 mm

736 mm 580 mm 740 mm 500 mm
Illustration shows optional accessories

5401 ED–AA/HHBA PS 5401 ED–AA/HEBA PS 7401 ED–AA/HHBA 7401 ED–AA/HEBA
Order-No.: 986388 Order-No.: 986389 Order-No.: 986551 Order-No.: 986552
GTIN: 4038469232218 GTIN: 4038469232225 GTIN: 4038469965512 GTIN: 4038469965529

Alternator Asynchronous Alternator Asynchronous
El. capacity: 3~ cos φ 1,0 4100 VA El. capacity: 3~ cos φ 1,0 6580 VA
El. capacity: 1~ cos φ 1,0 3800 VA El. capacity: 1~ cos φ 1,0 5500 VA
Voltage 3~ 400 V Voltage 3~ 400 V
Voltage 1~ 230 V Voltage 1~ 230 V
Current 3~ 5,9 A Current 3~ 9,4 A
Max. sum. current 1~ 12,26 A Max. sum. current 1~ 24 A
Current 1~ (CEE) 12,26 A Current 1~ (CEE) 24 A
Current 1~ (Schuko) 12,26 A Current 1~ (Schuko) 16 A
Max. starting current cos φ 0,6 7,49 A 3~ Max. starting current cos φ 0,6 25 A 3~
Frequency 50 Hz (with 20% voltage drop) 40 A 1~
Safety class alternator IP 54 Frequency 50 Hz
Engine type Honda GX270 RT2 Safety class alternator IP 54
Number of cylinders 1 Engine type Honda GX 390 Super Silent
Rotation-speed (3000 1/min) 3000 U min -1 Number of cylinders 1
Fuel type Gasoline Rotation-speed (3000 1/min) 3000 U min -1
Engine oil capacity 1,1 l Fuel type Gasoline
Engine power 4,6 kW Engine oil capacity 1,1 l
Cooling engine/alternator Air / Air Engine power 7,5 kW
Tank capacity 19 l Cooling engine/alternator Air / Air
Operating time: full load/half load 14 / 19 h Tank capacity 20 l
Weight 98 / 105 kg with battery Operating time: full load/half load 6 / 11 h
Dimensions L x W x H 736 x 580 x 530 mm Weight 107 / 115 kg with battery
Noise power level L WA 96 dB(A) Dimensions L x W x H 740 x 500 x 530 mm
Noise power level L WA 97 dB(A)
Nach TA-Lärm Noise pressure (10m) 69 dB(A)
Accessory (optional) Order-No. Accessory (optional) Order-No.
Exhaust hose 904872 3) Exhaust hose 904872 3)
Adapter for exhaust hose 904880 Adapter for exhaust hose 904880
Operating control ComAp Nano 988830 Remote starting 908246 1)2)4)6)
Remote start (in combination with ComAp) 988831 Protection switch FI (earthing set incl.) 904390 1)6)8)
Option Economic mode 988832 2) Waterproof sockets 903052 6)
Insulation control 988833 GW 308 988553 1)6)
Insulation control with shutdown 988334 Chassis (pre-finished) 988548
Automatic Choke 988835 Standard starting battery 020316 (E-Start)
ATS control panel nano external 3ph. (E-Start) 988836 Emergency power change-over MNU 3ph. (ext.) 988331
Chassis (pre-finished) 988745 ATS control panel nano external 3ph. (E-Start) 904766 4)6)
Lifting set 911643 Add. fuel tank 50 l (assembly kit required) 923995 5)6)7)
Earthing set 908250 Add. fuel tank 100 l (assembly kit required) 923998 5)6)7)
Add. fuel tank 80 l 988839 Add. fuel tank 150 l (assembly kit required) 923963 5)6)7)
T-valve for external fueling 988828 Assembly kit for additional fuel tank 923994 6)
Option Economic mode mode (hand start/ e-start) 988910/ 988911
more accessories on the accessories list

6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 19
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
