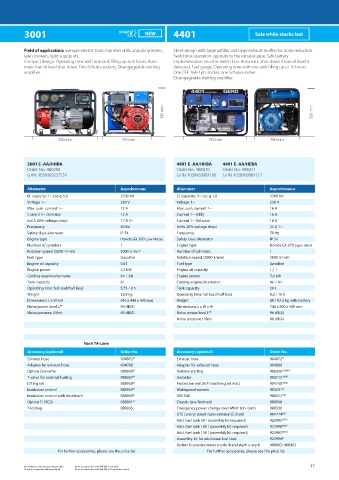

Page 17 - Geko 01_2020

3001 NEW 4401 Sale while stocks last

Field of application: average electric tools, hammer drills, angular grinders, Silent design with large airfilter and large exhaust muffler for noise reduction.
lawn mowers, light supply, etc. Switchbox operation opposite to the exhaust-pipe. Safe battery
Compact design. Operating time with one tank filling up to 8 hours. Auto- implementation into the switch box. Automatic shut down if low oil level is
matic low oil level shut down. Two Schuko-sockets. Disengageable starting detected. Fuel gauge. Operating time with one tank filling up to 15 hours.
amplifier. One CEE 16A-1ph. socket, one Schuko-socket.
Disengageable starting amplifier.

390 mm 530 mm

520 mm 410 mm 740 mm 500 mm

3001 E–AA/HHBA 4401 E–AA/HHBA 4401 E–AA/HEBA
Order-No.: 986300 Order-No.: 988410 Order-No.: 988411
GTIN: 4038469237534 GTIN: 4038469984100 GTIN: 4038469984117

Alternator Asynchronous Alternator Asynchronous
El. capacity: 1~ cos φ 1,0 2700 VA El. capacity: 1~ cos φ 1,0 3700 VA
Voltage 1~ 230 V Voltage 1~ 230 V
Max. sum. current 1~ 13 A Max. sum. current 1~ 16 A
Current 1~ (Schuko) 13 A Current 1~ (CEE) 16 A
(with 20% voltage drop) 17 A 1~ Current 1~ (Schuko) 16 A
Frequency 50 Hz (with 20% voltage drop) 25 A 1~
Safety class alternator IP 54 Frequency 50 Hz
Engine type Honda GX 200 Low Noise Safety class alternator IP 54
Number of cylinders 1 Engine type Honda GX 270 Super Silent
Rotation-speed (3000 1/min) 3000 U min -1 Number of cylinders 1
Fuel type Gasoline Rotation-speed (3000 1/min) 3000 U min -1
Engine oil capacity 0,6 l Fuel type Gasoline
Engine power 3,3 kW Engine oil capacity 1,1 l
Cooling engine/alternator Air / Air Engine power 5,4 kW
Tank capacity 9 l Cooling engine/alternator Air / Air
Operating time: full load/half load 5,75 / 8 h Tank capacity 20 l
Weight 55,8 kg Operating time: full load/half load 8,3 / 15 h

Dimensions L x W x H 540 x 440 x 400 mm Weight 89 / 97,5 kg with battery
Noise power level L WA 96 dB(A) Dimensions L x W x H 740 x 500 x 530 mm
Noise pressure (10m) 68 dB(A) Noise power level L WA 96 dB(A)
Noise pressure (10m) 68 dB(A)

Nach TA-Lärm
Accessory (optional) Order-No. Accessory (optional) Order-No.
Exhaust hose 904872 3) Exhaust hose 904872 3)
Adapter for exhaust hose 904768 Adapter for exhaust hose 904880
Option Economic 988936 6) Remote starting 908246 1)2)4)6)
T-valve for external fueling 988937 6) Isometer 903715 1)6)9)
Lifting set 988938 6) Protection switch FI (earthing set incl.) 904758 1)6)8)
Insulation control 988939 6) Waterproof sockets 903051 6)
Insulation control with shutdown 988940 6) GW 308 988522 1)6)
Option FI (RCD) 988941 6) Chassis (pre-finished) 988548
Tool bag 988935 Emergency power change-over MNU 1ph. (ext.) 988330
ATS control panel nano external (E-Start) 904774 4)6)
Add. fuel tank 50 l (assembly kit required) 923995 5)6)7)
Add. fuel tank 100 l (assembly kit required) 923998 5)6)7)
Add. fuel tank 150 l (assembly kit required) 923963 5)6)7)
Assembly kit for additional fuel tank 923994 6)
Option Economic mode mode (hand start/ e-start) 988902/ 988903
For further accessories, please see the price list For further accessories, please see the price list

6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 17
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
