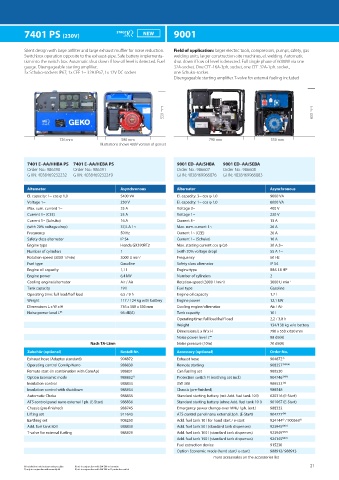

Page 21 - Geko 01_2020

7401 PS (230V) NEW 9001

Silent design with large airfilter and large exhaust muffler for noise reduction. Field of application: larger electric tools, compressors, pumps, safety, gas
Switchbox operation opposite to the exhaust-pipe. Safe battery implementa- welding units, larger construction-site machines, el. welding. Automatic
tion into the switch box. Automatic shut down if low oil level is detected. Fuel shut down if low oil level is detected. Full single phase of 6000W via one
gauge. Disengageable starting amplifier. 32A-socket. One CEE-16A-3ph. socket, one CEE 32A-1ph. socket,
3x Schuko-sockets IP67, 1x CEE 1~ 32A IP67, 1x 12V DC socket one Schuko-socket.
Disengageable starting amplifier. T-valve for external fueling included

530 mm 650 mm

736 mm 580 mm 790 mm 550 mm
Illustrations shows 400V version of genset

7401 E–AA/HHBA PS 7401 E–AA/HEBA PS 9001 ED–AA/SHBA 9001 ED–AA/SEBA
Order-No.: 986390 Order-No.: 986391 Order-No.: 986607 Order-No.: 986608
GTIN: 4038469232232 GTIN: 4038469232249 GTIN: 4038469966076 GTIN: 4038469966083

Alternator Asynchronous Alternator Asynchronous
El. capacity: 1~ cos φ 1,0 5400 VA El. capacity: 3~ cos φ 1,0 9000 VA
Voltage 1~ 230 V El. capacity: 1~ cos φ 1,0 6000 VA
Max. sum. current 1~ 25 A Voltage 3~ 400 V
Current 1~ (CEE) 25 A Voltage 1~ 230 V
Current 1~ (Schuko) 16 A Current 3~ 13 A
(with 20% voltage drop) 37,5 A 1~ Max. sum. current 1~ 26 A
Frequency 50 Hz Current 1~ (CEE) 26 A
Safety class alternator IP 54 Current 1~ (Schuko) 16 A
Engine type Honda GX390RT2 Max. starting current cos φ 0,6 30 A 3~
Number of cylinders 1 (with 20% voltage drop) 55 A 1~
Rotation-speed (3000 1/min) 3000 U min -1 Frequency 50 Hz
Fuel type Gasoline Safety class alternator IP 54
Engine oil capacity 1,1 l Engine type B&S 18 HP
Engine power 6,4 kW Number of cylinders 2
Cooling engine/alternator Air / Air Rotation-speed (3000 1/min) 3000 U min -1
Tank capacity 19 l Fuel type Gasoline
Operating time: full load/half load 6,5 / 9 h Engine oil capacity 1,7 l
Weight 117 / 124 kg with battery Engine power 12,1 kW
Dimensions L x W x H 736 x 580 x 530 mm Cooling engine/alternator Air / Air
Noise power level L WA 96 dB(A) Tank capacity 10 l
Operating time: full load/half load 2,2 / 3,8 h
Weight 134/138 kg w/o battery
Dimensions L x W x H 790 x 550 x 650 mm
Noise power level L WA 98 dB(A)
Nach TA-Lärm Noise pressure (10m) 70 dB(A)
Zubehör (optional) Bestell-Nr. Accessory (optional) Order-No.
Exhaust hose (Adapter standard) 904872 Exhaust hose 904872 3)
Operating control ComAp Nano 988830 Remote starting 908257 1)2)4)6)
Remote start (in combination with ComAp) 988831 Can fueling set 988530
Option Economic mode 988832 2) Protection switch FI (earthing set incl.) 904746 1)6)8)
Insulation control 988833 GW 308 988533 1)6)
Insulation control with shutdown 988834 Chassis (pre-finished) 988548
Automatic Choke 988835 Standard starting battery (mit Add. fuel tank 10 l) 020316 (E-Start)
ATS control panel nano external 1ph. (E-Start) 988836 Standard starting battery (ohne Add. fuel tank 10 l) 901067 (E-Start)
Chassis (pre-finished) 988745 Emergency power change-over MNU 1ph. (ext.) 988332
Lifting set 911643 ATS control panel nano external 3ph. (E-Start) 904777 4)6)
Earthing set 908250 Add. fuel tank 10 l for hand start / e-start 924144 / 900563 6)
6)
Add. fuel tank 80 l 988839 Add. fuel tank 50 l (standard tank dispenses) 923945 5)6)7)
T-valve for external fueling 988829 Add. fuel tank 100 l (standard tank dispenses) 923949 5)6)7)
Add. fuel tank 150 l (standard tank dispenses) 924145 5)6)7)
Fuel extraction device 915230
Option Economic mode (hand start/ e-start) 988912/ 988913
more accessories on the accessories list
6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 21
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
