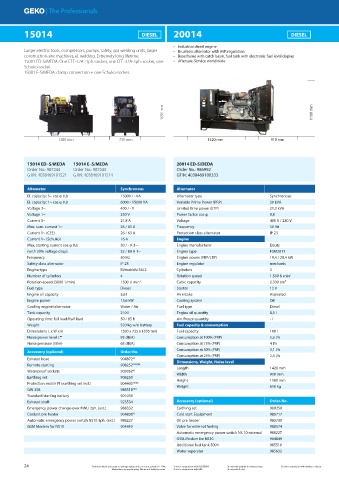

Page 24 - Geko 01_2020

| The Professionals

15014 DIESEL 20014 DIESEL

• Industrial diesel engine
Larger electric tools, compressors, pumps, safety, gas welding units, larger • Brushless alternator with AVR regulation
construction-site machines, el. welding. Extremely long lifetime. • Base frame with catch basin, fuel tank with electronic fuel level display
15001 ED-S/MEDA: One CEE-32A -1ph.-socket, one CEE-32A-3ph.-socket, one • Aftersale-Service world wide
Schuko-socket.
15001 E-S/MEDA: clamp connection + one Schuko-socket.

1095 mm 1100 mm

1380 mm 735 mm 1420 mm 910 mm

15014 ED–S/MEDA 15014 E–S/MEDA 20014 ED-S/DEDA
Order-No.: 987244 Order-No.: 987243 Order No.: 986992
GTIN: 4038469101521 GTIN: 4038469101514 GTIN: 4038469100333

Alternator Synchronous Alternator
El. capacity: 3~ cos φ 0,8 15000 / - VA Alternator type Synchronous
El. capacity: 1~ cos φ 0,8 6000 / 15000 VA Variable Prime Power (PRP) 20 kVA
Voltage 3~ 400 / - V Limited time power (LTP) 21,3 kVA
Voltage 1~ 230 V Power factor cos φ 0,8
Current 3~ 21,8 A Voltage 400 V / 230 V
Max. sum. current 1~ 26 / 65 A Frequency 50 Hz
Current 1~ (CEE) 26 / 63 A Protection class alternator IP 23
Current 1~ (Schuko) 16 A Engine
Max. starting current cos φ 0,6 30 / - A 3~ Engine manufacturer Deutz
(with 20% voltage drop) 32 / 89 A 1~ Engine type F3M2011
Frequency 50 Hz Engine power (PRP/LTP) 19,4 / 20,4 kW
Safety class alternator IP 23 Engine regulator mechanic
Engine type Mitsubishi S4L2 Cylinders 3
Number of cylinders 4 Rotation speed 1.500 U min -1
Rotation-speed (3000 1/min) 1500 U min -1 Cubic capacity 2.330 cm³
Fuel type Diesel Starter 12 V
Engine oil capacity 5,6 l Air intake Aspirated
Engine power 13,6 kW Cooling system Oil
Cooling engine/alternator Water / Air Fuel type Diesel
Tank capacity 210 l Engine oil quantity 8,5 l
Operating time: full load/half load 50 / 85 h Antifreeze quantity - l
Weight 520 kg w/o battery Fuel capacity & consumption
Dimensions L x W x H 1380 x 735 x 1095 mm Fuel capacity 160 l
Noise power level L WA 93 dB(A) Consumption at 100% (PRP) 5,3 l/h
Noise pressure (10m) 65 dB(A) Consumption at 75% (PRP) 4 l/h
Accessory (optional) Order-No. Consumption at 50% (PRP) 3,1 l/h
Consumption at 25% (PRP) 2,5 l/h
Exhaust hose 904872 3) Dimensions, Weight, Noise level
Remote starting 908252 1)2)4)6)
Length 1420 mm
Waterproof sockets 903052 6) Width 910 mm
Earthing set 908250 Height 1100 mm
Protection switch FI (earthing set incl.) 904400 1)6)8) Weight 610 kg
GW 308 988518 1)6)
Standard starting battery 901059
Exhaust shaft 923534 Accessory (optional) Order-No.
Emergency power change-over MNU 3ph. (ext.) 988332 Earthing set 908250
Coolant pre heater 904836 6) Cold start Equipment 985717
Automatic emergency power switch NS10 3ph. (ext.) 988227 Oil pre heater 985730
GSM Modem for NS10 904849 Valve for external fueling 988574
Automatic emergency power switch NS 10 external 988227
GSM Modem for NS10 904849
Additional fuel tank 500 l 985510
Water seperator 985632

24 Technical details are based on average values and can vary a spread of ± 10%. 1) n/a in cunjunction with BLC/GE803 3) only with adapter for exhaust hose 5) n/a in conjunction with handles or chassis
Illustrations are non-binding. We are not liable for errata. 2) n/a in conjunction with UBC 4) only with E-start
