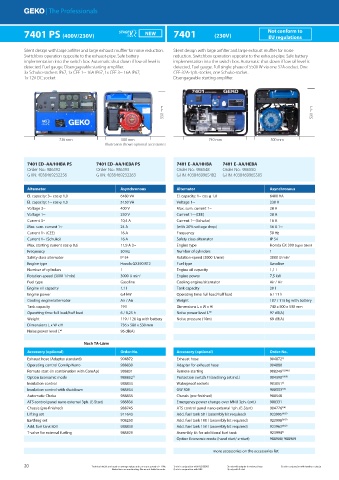

Page 20 - Geko 01_2020

| The Professionals

7401 PS (400V/230V) NEW 7401 (230V) Not conform to
EU regulations
Silent design with large airfilter and large exhaust muffler for noise reduction. Silent design with large airfilter and large exhaust muffler for noise
Switchbox operation opposite to the exhaust-pipe. Safe battery reduction. Switchbox operation opposite to the exhaust-pipe. Safe battery
implementation into the switch box. Automatic shut down if low oil level is implementation into the switch box. Automatic shut down if low oil level is
detected. Fuel gauge. Disengageable starting amplifier. detected. Fuel gauge. Full single phase of 5500 W via one 32A-socket. One
3x Schuko-sockets IP67, 1x CEE 1~ 16A IP67, 1x CEE 3~ 16A IP67, CEE-32A-1ph.-socket, one Schuko-socket.
1x 12V DC socket Disengageable starting amplifier.

530 mm 530 mm

736 mm 580 mm 740 mm 500 mm
Illustration shows optional accessories

7401 ED–AA/HHBA PS 7401 ED–AA/HEBA PS 7401 E–AA/HHBA 7401 E–AA/HEBA
Order-No.: 986392 Order-No.: 986393 Order-No.: 986548 Order-No.: 986550
GTIN: 4038469232256 GTIN: 4038469232263 GTIN: 4038469965482 GTIN: 4038469965505

Alternator Asynchronous Alternator Asynchronous
El. capacity: 3~ cos φ 1,0 6480 VA El. capacity: 1~ cos φ 1,0 6400 VA
El. capacity: 1~ cos φ 1,0 5150 VA Voltage 1~ 230 V
Voltage 3~ 400 V Max. sum. current 1~ 28 A
Voltage 1~ 230 V Current 1~ (CEE) 28 A
Current 3~ 10,4 A Current 1~ (Schuko) 16 A
Max. sum. current 1~ 24 A (with 20% voltage drop) 56 A 1~
Current 1~ (CEE) 16 A Frequency 50 Hz
Current 1~ (Schuko) 16 A Safety class alternator IP 54
Max. starting current cos φ 0,6 11,9 A 3~ Engine type Honda GX 390 Super Silent
Frequency 50 Hz Number of cylinders 1
Safety class alternator IP 54 Rotation-speed (3000 1/min) 3000 U min -1
Engine type Honda GX390 RT2 Fuel type Gasoline
Number of cylinders 1 Engine oil capacity 1,1 l
Rotation-speed (3000 1/min) 3000 U min -1 Engine power 7,5 kW
Fuel type Gasoline Cooling engine/alternator Air / Air
Engine oil capacity 1,1 l Tank capacity 20 l
Engine power 6,4 kW Operating time: full load/half load 6 / 11 h
Cooling engine/alternator Air / Air Weight 107 / 115 kg with battery
Tank capacity 19 l Dimensions L x W x H 740 x 500 x 530 mm
Operating time: full load/half load 6 / 8,25 h Noise power level L WA 97 dB(A)
Weight 119 / 126 kg with battery Noise pressure (10m) 69 dB(A)
Dimensions L x W x H 736 x 580 x 530 mm
Noise power level L WA 96 dB(A)

Nach TA-Lärm
Accessory (optional) Order-No. Accessory (optional) Order-No.
Exhaust hose (Adapter standard) 904872 Exhaust hose 904872 3)
Operating control ComAp Nano 988830 Adapter for exhaust hose 904880
Remote start (in combination with ComAp) 988831 Remote starting 908246 1)2)4)6)
Option Economic mode 988832 2) Protection switch FI (earthing set incl.) 904390 1)6)8)
Insulation control 988833 Waterproof sockets 903051 6)
Insulation control with shutdown 988834 GW 308 988553 1)6)
Automatic Choke 988835 Chassis (pre-finished) 988548
ATS control panel nano external 3ph. (E-Start) 988836 Emergency power change-over MNU 3ph. (ext.) 988331
Chassis (pre-finished) 988745 ATS control panel nano external 1ph. (E-Start) 904776 4)6)
Lifting set 911643 Add. fuel tank 50 l (assembly kit required) 923995 5)6)7)
Earthing set 908250 Add. fuel tank 100 l (assembly kit required) 923998 5)6)7)
Add. fuel tank 80 l 988839 Add. fuel tank 150 l (assembly kit required) 923963 5)6)7)
T-valve for external fueling 988829 Assembly kit for additional fuel tank 923994 6)
Option Economic mode (hand start/ e-start) 988908/ 988909
more accessories on the accessories list

20 Technical details are based on average values and can vary a spread of ± 10%. 1) n/a in cunjunction with BLC/GE803 3) only with adapter for exhaust hose 5) n/a in conjunction with handles or chassis
Illustrations are non-binding. We are not liable for errata. 2) n/a in conjunction with UBC 4) only with E-start
