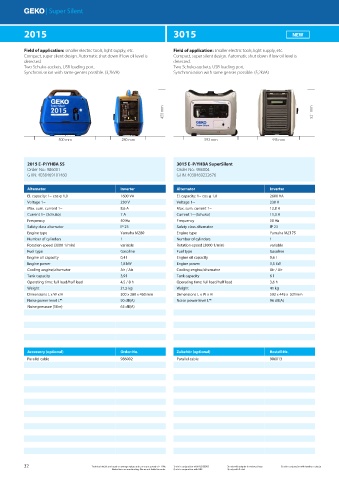

Page 32 - Geko 01_2020

| Super Silent

2015 3015 NEW

Field of application: smaller electric tools, light supply, etc. Field of application: smaller electric tools, light supply, etc.
Compact, super silent design. Automatic shut down if low oil level is Compact, super silent design. Automatic shut down if low oil level is
detected. detected.
Two Schuko-sockets. USB loading port. Two Schuko-sockets. USB loading port.
Synchronization with same genset possible. (3,2kVA) Synchronization with same genset possible. (5,2kVA)

450 mm 521 mm

500 mm 280 mm 593 mm 445 mm

2015 E–P/YHBA SS 3015 E–P/YHBA SuperSilent
Order-No.: 986001 Order-No.: 986004
GTIN: 4038469101460 GTIN: 4038469232676

Alternator Inverter Alternator Inverter
El. capacity: 1~ cos φ 1,0 1600 VA El. capacity: 1~ cos φ 1,0 2600 VA
Voltage 1~ 230 V Voltage 1~ 230 V
Max. sum. current 1~ 8,6 A Max. sum. current 1~ 12,8 A
Current 1~ (Schuko) 7 A Current 1~ (Schuko) 11,3 A
Frequency 50 Hz Frequency 50 Hz
Safety class alternator IP 23 Safety class alternator IP 23
Engine type Yamaha MZ80 Engine type Yamaha MZ175
Number of cylinders 1 Number of cylinders 1
Rotation-speed (3000 1/min) variable Rotation-speed (3000 1/min) variable
Fuel type Gasoline Fuel type Gasoline
Engine oil capacity 0,4 l Engine oil capacity 0,6 l
Engine power 1,8 kW Engine power 3,5 kW
Cooling engine/alternator Air / Air Cooling engine/alternator Air / Air
Tank capacity 3,9 l Tank capacity 6 l
Operating time: full load/half load 4,5 / 8 h Operating time: full load/half load 3,6 h
Weight 21,5 kg Weight 41 kg
Dimensions L x W x H 500 x 280 x 450 mm Dimensions L x W x H 593 x 445 x 521mm
Noise power level L WA 90 dB(A) Noise power level L WA 96 dB(A)
Noise pressure (10m) 65 dB(A)

Accessory (optional) Order-No. Zubehör (optional) Bestell-Nr.
Parallel cable 986002 Parallel cable 986013

32 Technical details are based on average values and can vary a spread of ± 10%. 1) n/a in cunjunction with BLC/GE803 3) only with adapter for exhaust hose 5) n/a in conjunction with handles or chassis
Illustrations are non-binding. We are not liable for errata. 2) n/a in conjunction with UBC 4) only with E-start
