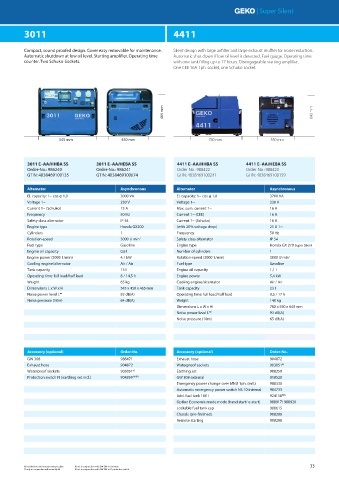

Page 33 - Geko 01_2020

| Super Silent

3011 4411

Compact, sound proofed design. Cover easy removable for maintenance. Silent design with large airfilter and large exhaust muffler for noise reduction..
Automatic shutdown at low oil level. Starting amplifier. Operating time Automatic shut down if low oil level is detected. Fuel gauge. Operating time
counter. Two Schuko-Sockets. with one tank filling up to 17 hours. Disengageable starting amplifier.
One CEE 16A-1ph. socket, one Schuko-socket.

465 mm 643 mm

545 mm 450 mm 780 mm 550 mm

3011 E–AA/HHBA SS 3011 E–AA/HEBA SS 4411 E–AA/HHBA SS 4411 E–AA/HEBA SS
Order-No.: 986240 Order-No.: 986241 Order-No.: 988422 Order-No.: 988423
GTIN: 4038469100135 GTIN: 4038469100074 GTIN: 4038469100241 GTIN: 4038469100159

Alternator Asynchronous Alternator Asynchronous
El. capacity: 1~ cos φ 1,0 3000 VA El. capacity: 1~ cos φ 1,0 3700 VA
Voltage 1~ 230 V Voltage 1~ 230 V
Current 1~ (Schuko) 13 A Max. sum. current 1~ 16 A
Frequency 50 Hz Current 1~ (CEE) 16 A
Safety class alternator IP 54 Current 1~ (Schuko) 16 A
Engine type Honda GX200 (with 20% voltage drop) 25 A 1~
Cylinders 1 Frequency 50 Hz
Rotation-speed 3000 U min -1 Safety class alternator IP 54
Fuel type Gasoline Engine type Honda GX 270 Super Silent
Engine oil capacity 0,6 l Number of cylinders 1
Engine power (3000 1/min) 4,1 kW Rotation-speed (3000 1/min) 3000 U min -1
Cooling engine/alternator Air / Air Fuel type Gasoline
Tank capacity 13 l Engine oil capacity 1,1 l
Operating time: full load/half load 8 / 14,5 h Engine power 5,4 kW
Weight 65 kg Cooling engine/alternator Air / Air
Dimensions L x W x H 545 x 450 x 465 mm Tank capacity 23 l
Noise power level L WA 92 dB(A) Operating time: full load/half load 9,5 / 17 h
Noise pressure (10m) 64 dB(A) Weight 140 kg

Dimensions L x W x H 780 x 550 x 643 mm
Noise power level L WA 93 dB(A)
Noise pressure (10m) 65 dB(A)

Accessory (optional) Order-No. Accessory (optional) Order-No.
GW 308 988471 Exhaust hose 904872
Exhaust hose 904872 Waterproof sockets 903051 6)
Waterproof sockets 903051 6) Earthing set 908250
Protection switch FI (earthing set incl.) 904399 1)6)8) GW 308 external 018520
Emergency power change-over MNU 1ph. (ext.) 988330
Automatic emergency power switch NS 10 internal 904733
Add. fuel tank 100 l 924158 5)6)
Option Economic mode mode (hand start/ e-start) 988917/ 988920
Lockable fuel tank cap 900615
Chassis (pre-finished) 908286
Remote starting 908288

6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 33
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
