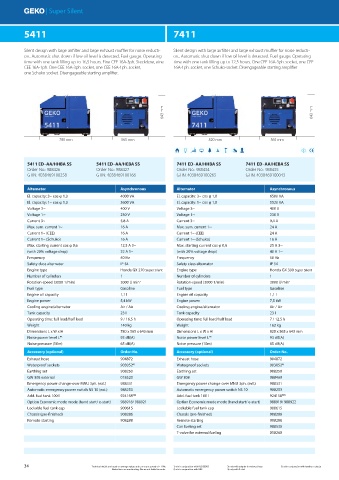

Page 34 - Geko 01_2020

| Super Silent

5411 7411

Silent design with large airfilter and large exhaust muffler for noise reducti- Silent design with large airfilter and large exhaust muffler for noise reducti-
on.. Automatic shut down if low oil level is detected. Fuel gauge. Operating on.. Automatic shut down if low oil level is detected. Fuel gauge. Operating
time with one tank filling up to 16,5 hours. Eine CEE 16A-3ph. Steckdose, eine time with one tank filling up to 12,5 hours. One CEE 16A-3ph. socket, one CEE
CEE 16A-1ph. One CEE 16A-3ph. socket, one CEE 16A-1ph. socket, 16A-1ph. socket, one Schuko-socket. Disengageable starting amplifier
one Schuko-socket. Disengageable starting amplifier.

643 mm 643 mm

780 mm 565 mm 820 mm 565 mm

5411 ED–AA/HHBA SS 5411 ED–AA/HEBA SS 7411 ED–AA/HHBA SS 7411 ED–AA/HEBA SS
Order-No.: 988426 Order-No.: 988427 Order-No.: 988434 Order-No.: 988435
GTIN: 4038469100258 GTIN: 4038469100166 GTIN: 4038469100265 GTIN: 4038469100043

Alternator Asynchronous Alternator Asynchronous
El. capacity: 3~ cos φ 1,0 4000 VA El. capacity: 3~ cos φ 1,0 6500 VA
El. capacity: 1~ cos φ 1,0 3600 VA El. capacity: 1~ cos φ 1,0 5520 VA
Voltage 3~ 400 V Voltage 3~ 400 V
Voltage 1~ 230 V Voltage 1~ 230 V
Current 3~ 5,8 A Current 3~ 9,4 A
Max. sum. current 1~ 16 A Max. sum. current 1~ 24 A
Current 1~ (CEE) 16 A Current 1~ (CEE) 24 A
Current 1~ (Schuko) 16 A Current 1~ (Schuko) 16 A
Max. starting current cos φ 0,6 12,5 A 3~ Max. starting current cos φ 0,6 25 A 3~
(with 20% voltage drop) 22 A 1~ (with 20% voltage drop) 40 A 1~
Frequency 50 Hz Frequency 50 Hz
Safety class alternator IP 54 Safety class alternator IP 54
Engine type Honda GX 270 Super Silent Engine type Honda GX 390 Super Silent
Number of cylinders 1 Number of cylinders 1
Rotation-speed (3000 1/min) 3000 U min -1 Rotation-speed (3000 1/min) 3000 U min -1
Fuel type Gasoline Fuel type Gasoline
Engine oil capacity 1,1 l Engine oil capacity 1,1 l
Engine power 5,4 kW Engine power 7,5 kW
Cooling engine/alternator Air / Air Cooling engine/alternator Air / Air
Tank capacity 23 l Tank capacity 23 l
Operating time: full load/half load 9 / 16,5 h Operating time: full load/half load 7 / 12,5 h
Weight 140 kg Weight 162 kg
Dimensions L x W x H 780 x 565 x 643 mm Dimensions L x W x H 820 x 565 x 643 mm
Noise power level L WA 93 dB(A) Noise power level L WA 93 dB(A)
Noise pressure (10m) 65 dB(A) Noise pressure (10m) 65 dB(A)
Accessory (optional) Order-No. Accessory (optional) Order-No.
Exhaust hose 904872 Exhaust hose 904872
Waterproof sockets 903052 6) Waterproof sockets 903052 6)
Earthing set 908250 Earthing set 908250
GW 308 external 018520 GW 308 988469
Emergency power change-over MNU 3ph. (ext.) 988331 Emergency power change-over MNU 3ph. (ext.) 988331
Automatic emergency power switch NS 10 (ext.) 988253 Automatic emergency power switch NS 10 988253
Add. fuel tank 100 l 924158 5)6) Add. fuel tank 100 l 924158 5)6)
Option Economic mode mode (hand start/ e-start) 988918/ 988921 Option Economic mode mode (hand start/ e-start) 988919/ 988922
Lockable fuel tank cap 900615 Lockable fuel tank cap 900615
Chassis (pre-finished) 908286 Chassis (pre-finished) 908286
Remote starting 908288 Remote starting 908288
Can fueling set 988530
T-valve for external fueling 018260

34 Technical details are based on average values and can vary a spread of ± 10%. 1) n/a in cunjunction with BLC/GE803 3) only with adapter for exhaust hose 5) n/a in conjunction with handles or chassis
Illustrations are non-binding. We are not liable for errata. 2) n/a in conjunction with UBC 4) only with E-start
