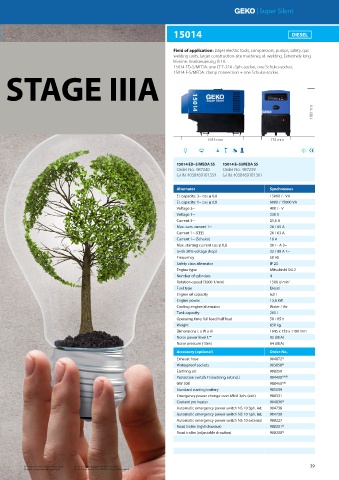

Page 39 - Geko 01_2020

| Super Silent

15014 DIESEL

Field of application: larger electric tools, compressors, pumps, safety, gas
welding units, larger construction-site machines, el. welding. Extremely long
lifetime. Inselsteuerung IS 10.
15014 ED-S/MEDA: one CEE-32A -3ph.-socket, one Schuko-socket.
STAGE IIIA
15014 E-S/MEDA: clamp connection + one Schuko-socket.

1180 mm

1645 mm 735 mm

15014 ED–S/MEDA SS 15014 E–S/MEDA SS
Order-No.: 987240 Order-No.: 987239
GTIN: 4038469101354 GTIN: 4038469101361

Alternator Synchronous
El. capacity: 3~ cos φ 0,8 15000 / - VA
El. capacity: 1~ cos φ 0,8 6000 / 15000 VA
Voltage 3~ 400 / - V
Voltage 1~ 230 V
Current 3~ 21,6 A
Max. sum. current 1~ 26 / 65 A
Current 1~ (CEE) 26 / 63 A
Current 1~ (Schuko) 16 A
Max. starting current cos φ 0,6 30 / - A 3~
(with 20% voltage drop) 32 / 89 A 1~
Frequency 50 Hz
Safety class alternator IP 23
Engine type Mitsubishi S4L2
Number of cylinders 4
Rotation-speed (3000 1/min) 1500 U min -1
Fuel type Diesel
Engine oil capacity 6,0 l
Engine power 13,6 kW
Cooling engine/alternator Water / Air
Tank capacity 205 l
Operating time: full load/half load 50 / 85 h
Weight 650 kg
Dimensions L x W x H 1645 x 735 x 1180 mm
Noise power level L WA 92 dB(A)
Noise pressure (10m) 64 dB(A)
Accessory (optional) Order-No.
Exhaust hose 904872 3)
Waterproof sockets 903058 6)
Earthing set 908250
Protection switch FI (earthing set incl.) 904400 1)6)8)
GW 308 988450 1)6)
Standard starting battery 901059
Emergency power change-over MNU 3ph. (ext.) 988331
Coolant pre heater 904836 6)
Automatic emergency power switch NS 10 3ph. int. 904738
Automatic emergency power switch NS 10 1ph. int. 904730
Automatic emergency power switch NS 10 external 988227
Road trailer (rigid drawbar) 988201 6)
Road trailer (adjustable drawbar) 988200 6)

6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 39
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
