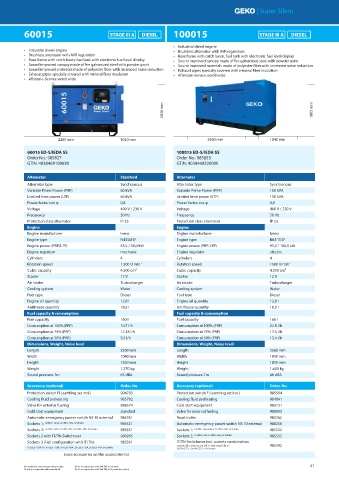

Page 41 - Geko 01_2020

| Super Silent

60015 STAGE III A DIESEL 100015 STAGE III A DIESEL

• Industrial diesel engine
• Industrial diesel engine • Brushless alternator with AVR regulation
• Brushless alternator with AVR regulation • Base frame with catch basin, fuel tank with electronic fuel level display
• Base frame with catch basin, fuel tank with electronic fuel level display • Sound improved canopy made of fire galvanized steel with powder paint
• Sound improved canopy made of fire galvanized steel with powder paint • Sound improved materials made of polyester fiber with increased noise reduction
• Sound improved materials made of polyester fiber with increased noise reduction • Exhaust pipes specially covered with mineral fiber insulation
• Exhaust pipes specially covered with mineral fiber insulation • Aftersale-Service world wide
• Aftersale-Service world wide

1820 mm 1805 mm

2260 mm 1040 mm 2560 mm 1040 mm

60015 ED-S/IEDA SS 100015 ED-S/IEDA SS
Order No.: 985827 Order No.: 985853
GTIN: 4038469100630 GTIN: 4038469220000

Alternator Stamford Alternator
Alternator type Synchronous Alternator type Synchronous
Variable Prime Power (PRP) 60 kVA Variable Prime Power (PRP) 100 kVA
Limited time power (LTP) 66 kVA Limited time power (LTP) 110 kVA
Power factor cos φ 0,8 Power factor cos φ 0,8
Voltage 400 V / 230 V Voltage 400 V / 230 V
Frequency 50 Hz Frequency 50 Hz
Protection class alternator IP 23 Protection class alternator IP 23
Engine Engine
Engine manufacturer Iveco Engine manufacturer Iveco
Engine type N45SM1F Engine type N45 TE2F
Engine power (PRP/LTP) 53,5 / 59,0 kW Engine power (PRP/LTP) 91,0 / 100,0 kW
Engine regulator mechanic Engine regulator electric
Cylinders 4 Cylinders 4
Rotation speed 1.500 U min -1 Rotation speed 1500 U min -1
Cubic capacity 4.500 cm³ Cubic capacity 4.500 cm³
Starter 12 V Starter 12 V
Air intake Turbocharger Air intake Turbocharger
Cooling system Water Cooling system Water
Fuel type Diesel Fuel type Diesel
Engine oil quantity 12,8 l Engine oil quantity 12,8 l
Antifreeze quantity 18,5 l Antifreeze quantity 10,0 l
Fuel capacity & consumption Fuel capacity & consumption
Fuel capacity 160 l Fuel capacity 160 l
Consumption at 100% (PRP) 16.7 l/h Consumption at 100% (PRP) 22.8 l/h
Consumption at 75% (PRP) 12.18 l/h Consumption at 75% (PRP) 17.5 l/h
Consumption at 50% (PRP) 9.5 l/h Consumption at 50% (PRP) 13.4 l/h
Dimensions, Weight, Noise level Dimensions, Weight, Noise level
Length 2260 mm Length 2560 mm
Width 1040 mm Width 1040 mm
Height 1820 mm Height 1810 mm
Weight 1.270 kg Weight 1.600 kg
Sound pressure 7m 65 dBA Sound pressure 7m 66 dBA
Accessory (optional) Order-No. Accessory (optional) Order-No.
Protection switch FI (earthing set incl.) 904793 Protection switch FI (earthing set incl.) 985504
Cooling fluid preheating 985792 Cooling fluid preheating 904841
Valve for external fueling 988574 Cold start equipment 985721
Cold start equipment standard Valve for external fueling 988595
Automatic emergency power switch NS 10 external 985741 Road trailer 985762
Sockets 1: 1xCEE3~ 125A, 1x CEE3~16A, 1x Schuko 985521 Automatic emergency power switch NS 10 external 988256
Sockets 2: 1x CEE3~125A, 1x CEE3~32A ,1x CEE3~16A, 2x Schuko 985531 Sockets 1: 1xCEE3~ Gesamtlast, 1x CEE3~16A, 1x Schuko 985522
Sockets 2 with IT/TN-Switchover 988265 Sockets 2: 1x CEE3~32A, 1x CEE3~16A, 2x Schuko 985532
Sockets 3 (Full configuration with IT/TN): 985591 IT/TN-Switchover incl. sockets combination:
1x125A CEE 3~(1h), 1x125A CEE 3~ (6h), 1x63A CEE 3~, 985592
1x CEE3~125A 1h, 1x CEE3~125A, 1x CEE3~63A , 2x CEE3~ 32A, 2x CEE3~16A, 6x Schuko 2x32A CEE 3~, 2x16A CEE 3~, 6x Schuko
more accessories on the accessories list

6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 41
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
