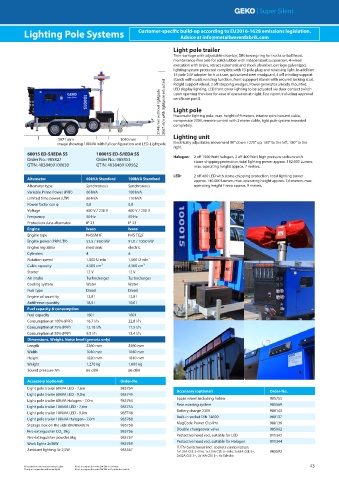

Page 43 - Geko 01_2020

| Super Silent

Lighting Pole Systems Customer-specific build-up according to EU2016-1628 emissions legislation.
Advice at info@metallwarenfabrik.com

Light pole trailer
Twin-carriage with adjustable drawbar, DIN towing ring for trucks or ball head,
maintenance-free axle for solid rubber with independant suspension, 4-wheel
execution with brake, retract automatic and shock absorber, carriage galvanized,
lighting system protected complete with 13 pole plug and reversing light. In addition
15 pole 24V adapter for truck use, galvanized steel mudguard, 4 off winding support
stands with quick winding function, front suppport stands with secured locking stud.
Ridgid support wheel, 2 off stopping wedges. Power generator already mounted.
LED display lighting, LED front cover lighting to be actuated via door contact switch
2148 mm without lightpole 3067 mm with lightpole retracted certificate part II.
upon opening the door for ease of operation at night. Test report including approval
Light pole
Pneumatic lighting pole: max. height of 9 meters, interior spiral wound cable,
compressor 230V, remote control with 2 meter cable, light pole system mounted
completely.

5971 mm 1040 mm Lighting unit
Image showing 100kVA with full configuration and LED-Lightpole Electrically adjustable, movement 90° down / 270° up, 180° to the left, 180° to the
right.
60015 ED-S/IEDA SS 100015 ED-S/IEDA SS Halogen: 2 off 1500 Watt halogen, 2 off 400 Watt high pressure sodium with
Order No.: 985827 Order No.: 985853 stone-chipping protection, total lighting power approx. 182.000 Lumen,
GTIN: 4038469100630 GTIN: 4038469100562 max. operating height approx. 7 meters.
LED: 2 off 400 LED with stone-chipping protection, total lighting power
Alternator 60kVA Stamford 100kVA Stamford approx. 140.000 Lumen, max. operating height approx. 7,6 meters, max.
Alternator type Synchronous Synchronous operating height Fireco approx. 9 meters.
Variable Prime Power (PRP) 60 kVA 100 kVA
Limited time power (LTP) 66 kVA 110 kVA
Power factor cos φ 0,8 0,8
Voltage 400 V / 230 V 400 V / 230 V
Frequency 50 Hz 50 Hz
Protection class alternator IP 23 IP 23
Engine Iveco Iveco
Engine type N45SM1F N45 TE2F
Engine power (PRP/LTP) 53,5 / 59,0 kW 91,0 / 100,0 kW
Engine regulator mechanic electric
Cylinders 4 4
Rotation speed 1.500 U min -1 1.500 U min -1
Cubic capacity 4.500 cm³ 4.500 cm³
Starter 12 V 12 V
Air intake Turbocharger Turbocharger
Cooling system Water Water
Fuel type Diesel Diesel
Engine oil quantity 12,8 l 12,8 l
Antifreeze quantity 18,5 l 10,0 l
Fuel capacity & consumption
Fuel capacity 160 l 160 l
Consumption at 100% (PRP) 16.7 l/h 22.8 l/h
Consumption at 75% (PRP) 12.18 l/h 17.5 l/h
Consumption at 50% (PRP) 9.5 l/h 13.4 l/h
Dimensions, Weight, Noise level (gensets only)
Length 2260 mm 2560 mm
Width 1040 mm 1040 mm
Height 1820 mm 1810 mm
Weight 1.270 kg 1.600 kg
Sound pressure 7m 65 dBA 66 dBA
Accessory (optional) Order-No.
Light pole trailer 60kVA LED - 7,6m 985754 Accessory (optional) Order-No.
Light pole trailer 60kVA LED - 9,0m 985749
Light pole trailer 60kVA Halogen - 7,0m 985764 Spare wheel including holder 985755
Light pole trailer 100kVA LED - 7,6m 985753 Rear warning system 985569
Light pole trailer 100kVA LED - 9,0m 985748 Battery charge 230V 988143
Light pole trailer 100kVA Halogen - 7,0m 985768 Built-in socket DIN 14690 988137
Storage box on the side 80x40x40cm 985758 MagCode Power Clip Pro 988136
Fire extinguisher CO 2kg 985756 Double changeover valve 985962
2
Fire extinguisher powder 6kg 985757 Protective hood red, suitable for LED 011342
Work lights 2x38W 985769 Protective hood red, suitable for Halogen 011344
Ambient lighting 4x 2,5W 985567 IT/TN-Switchover incl. sockets combination: 985592
1x125A CEE 3~(1h), 1x125A CEE 3~ (6h), 1x63A CEE 3~,
2x32A CEE 3~, 2x16A CEE 3~, 6x Schuko
6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 43
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
