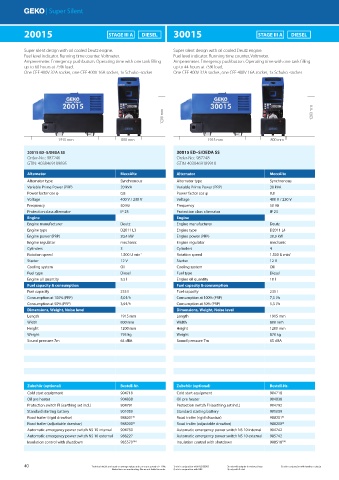

Page 40 - Geko 01_2020

| Super Silent

20015 STAGE III A DIESEL 30015 STAGE III A DIESEL

Super silent design with oil cooled Deutz engine. Super silent design with oil cooled Deutz engine.
Fuel level indicator. Running time counter. Voltmeter. Fuel level indicator. Running time counter. Voltmeter.
Amperemeter. Emergency pushbutton. Operating time with one tank filling Amperemeter. Emergency pushbutton. Operating time with one tank filling
up to 60 hours at 75% load. up to 44 hours at 75% load.
One CEE 400V 32A socket, one CEE 400V 16A socket, 1x Schuko -socket One CEE 400V 32A socket, one CEE 400V 16A socket, 1x Schuko -socket

1200 mm 1200 mm

1915 mm 800 mm 1915 mm 800 mm

20015 ED–S/DEDA SS 30015 ED–S/DEDA SS
Order-No.: 987246 Order-No.: 987248
GTIN: 4038469189895 GTIN: 4038469189918

Alternator MeccAlte Alternator MeccAlte
Alternator type Synchronous Alternator type Synchronous
Variable Prime Power (PRP) 20 kVA Variable Prime Power (PRP) 30 kVA
Power factor cos φ 0,8 Power factor cos φ 0,8
Voltage 400 V / 230 V Voltage 400 V / 230 V
Frequency 50 Hz Frequency 50 Hz
Protection class alternator IP 23 Protection class alternator IP 23
Engine Engine
Engine manufacturer Deutz Engine manufacturer Deutz
Engine type D2011 L3 Engine type D2011 L4
Engine power (PRP) 20,4 kW Engine power (PRP) 30,9 kW
Engine regulator mechanic Engine regulator mechanic
Cylinders 3 Cylinders 4
Rotation speed 1.500 U min -1 Rotation speed 1.500 U min -1
Starter 12 V Starter 12 V
Cooling system Oil Cooling system Oil
Fuel type Diesel Fuel type Diesel
Engine oil quantity 5,5 l Engine oil quantity 10 l
Fuel capacity & consumption Fuel capacity & consumption
Fuel capacity 235 l Fuel capacity 235 l
Consumption at 100% (PRP) 5,0 l/h Consumption at 100% (PRP) 7,3 l/h
Consumption at 50% (PRP) 3,9 l/h Consumption at 50% (PRP) 5,3 l/h
Dimensions, Weight, Noise level Dimensions, Weight, Noise level
Length 1915 mm Length 1915 mm
Width 800 mm Width 800 mm
Height 1200 mm Height 1200 mm
Weight 795 kg Weight 870 kg
Sound pressure 7m 64 dBA Sound pressure 7m 65 dBA

Zubehör (optional) Bestell-Nr. Zubehör (optional) Bestell-Nr.
Cold start equipment 904718 Cold start equipment 904718
Oil pre heater 904838 Oil pre heater 904838
Protection switch FI (earthing set incl.) 904791 Protection switch FI (earthing set incl.) 904792
Standard starting battery 901059 Standard starting battery 901059
Road trailer (rigid drawbar) 988201 6) Road trailer (rigid drawbar) 988201 6)
Road trailer (adjustable drawbar) 988200 6) Road trailer (adjustable drawbar) 988200 6)
Automatic emergency power switch NS 10 internal 904750 Automatic emergency power switch NS 10 internal 904742
Automatic emergency power switch NS 10 external 988227 Automatic emergency power switch NS 10 external 985742
Insulation control with shutdown 985570 1)6) Insulation control with shutdown 988518 1)6)

40 Technical details are based on average values and can vary a spread of ± 10%. 1) n/a in cunjunction with BLC/GE803 3) only with adapter for exhaust hose 5) n/a in conjunction with handles or chassis
Illustrations are non-binding. We are not liable for errata. 2) n/a in conjunction with UBC 4) only with E-start
