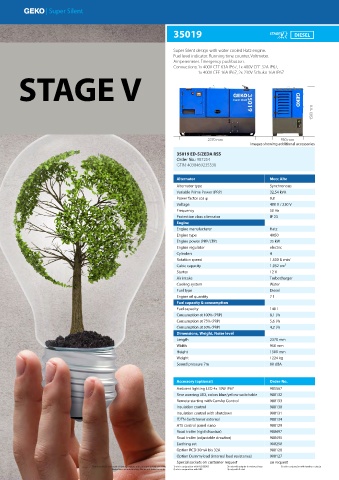

Page 42 - Geko 01_2020

| Super Silent

35019 DIESEL

Super Silent design with water cooled Hatz engine.
Fuel level indicator. Running time counter. Voltmeter.
Amperemeter. Emergency pushbutton.
Connections: 1x 400V CEE 63A IP67, 1x 400V CEE 32A IP67,
STAGE V
1x 400V CEE 16A IP67, 2x 230V Schuko 16A IP67

1500 mm

2370 mm 950 mm
Images showing additional accessories
35019 ED-S/ZEDA RSS
Order No.: 987254
GTIN: 4038469235530

Alternator Mecc Alte
Alternator type Synchronous
Variable Prime Power (PRP) 32,54 kVA
Power factor cos φ 0,8
Voltage 400 V / 230 V
Frequency 50 Hz
Protection class alternator IP 23
Engine
Engine manufacturer Hatz
Engine type 4H50
Engine power (PRP/LTP) 35 kW
Engine regulator electric
Cylinders 4
Rotation speed 1.500 U min -1
Cubic capacity 1.952 cm³
Starter 12 V
Air intake Turbocharger
Cooling system Water
Fuel type Diesel
Engine oil quantity 7 l
Fuel capacity & consumption
Fuel capacity 140 l
Consumption at 100% (PRP) 8,1 l/h
Consumption at 75% (PRP) 5,6 l/h
Consumption at 50% (PRP) 4,2 l/h
Dimensions, Weight, Noise level
Length 2370 mm
Width 950 mm
Height 1500 mm
Weight 1224 kg
Sound pressure 7m 88 dBA

Accessory (optional) Order-No.
Ambient lighting LED 4x 10W IP67 985567
Rear warning LED, colors blue/yellow switchable 988132
Remote starting with ComAp Control 988133
Insulation control 988130
Insulation control with shutdown 988131
IT/TN-Switchover external 988134
ATS control panel nano 988129
Road trailer (rigid drawbar) 988497
Road trailer (adjustable drawbar) 988495
Earthing set 908250
Option RCD 30mA bis 32A 988128
Option Dummyload (internal load resistance) 988127
Special sockets on customer request on request
42 Technische Angaben beruhen auf Durchschnittswerten und können im Einzelfall abweichen. Aus diesem Grund sind die 1) n/a in cunjunction with BLC/GE803 3) only with adapter for exhaust hose 5) n/a in conjunction with handles or chassis
Technical details are based on average values and can vary a spread of ± 10%.
technischen Angaben unverbindlich. Abbildungen sind unverbindlich. Für Druckfehler übernehmen wir keine Haftung. Illustrations are non-binding. We are not liable for errata. 2) n/a in conjunction with UBC 4) only with E-start
