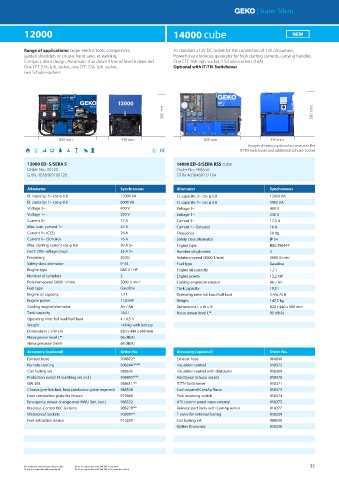

Page 35 - Geko 01_2020

| Super Silent

12000 14000 cube NEW

Range of applications: larger electric tools, compressors, As standard a 12V DC socket for the connection of 12V consumers,
garden shredders or circular hand saws, el. welding. Powerful synchronous generator for high starting currents, carrying handles.
Compact, silent design. Automatic shut down if low oil level is detected. One CEE 16A-3ph. socket, 2 Schuko-sockets (16A)
One CEE 32A-3ph. socket, one CEE 32A-1ph. socket, Optional with IT/TN-Switchover
two Schuko-sockets.

580 mm 580 mm

820 mm 440 mm 820 mm 440 mm
Images showing optional accsessories like
IT/TN-switchover and additional Schuko-socket

12000 ED–S/SEBA S 14000 ED–S/SEBA RSS cube
Order-No.: V5123 Order-No.: 986556
GTIN: 4038469100128 GTIN: 4038469232164

Alternator Synchronous Alternator Synchronous
El. capacity: 3~ cos φ 0,8 12000 VA El. capacity: 3~ cos φ 0,8 13400 VA
El. capacity: 1~ cos φ 0,8 6000 VA El. capacity: 1~ cos φ 0,8 5900 VA
Voltage 3~ 400 V Voltage 3~ 400 V
Voltage 1~ 230 V Voltage 1~ 230 V
Current 3~ 17 A Current 3~ 17,3 A
Max. sum. current 1~ 42 A Current 1~ (Schuko) 16 A
Current 1~ (CEE) 26 A Frequency 50 Hz
Current 1~ (Schuko) 16 A Safety class alternator IP 54
Max. starting current cos φ 0,6 30 A 3~ Engine type B&S 386447
(with 20% voltage drop) 55 A 1~ Number of cylinders 2
Frequency 50 Hz Rotation-speed (3000 1/min) 3000 U min -1
Safety class alternator IP 54 Fuel type Gasoline
Engine type B&S 21 HP Engine oil capacity 1,7 l
Number of cylinders 2 Engine power 13,2 kW
Rotation-speed (3000 1/min) 3000 U min -1 Cooling engine/alternator Air / Air
Fuel type Gasoline Tank capacity 19,5 l
Engine oil capacity 1,7 l Operating time: full load/half load 3,4/6,75 h
Engine power 11,8 kW Weight 147,5 kg

Cooling engine/alternator Air / Air Dimensions L x W x H 820 x 440 x 580 mm
Tank capacity 16,5 l Noise power level L WA 95 dB(A)
Operating time: full load/half load 4 / 6,5 h
Weight 148 kg with battery
Dimensions L x W x H 820 x 440 x 580 mm
Noise power level L WA 96 dB(A)
Noise pressure (10m) 68 dB(A)
Accessory (optional) Order-No. Accessory (optional) Order-No.
Exhaust hose 904872 3) Exhaust hose 904890
Remote starting 908244 1)2)4)6) Insulation control 018372
Can fueling set 988530 Insulation control with shutdown 018369
Protection switch FI (earthing set incl.) 904400 1)6)8) Additional Schuko socket 018370
GW 308 988611 1)6) IT/TN-Switchover 018371
Chassis (pre-finished, heat conduction plate required) 988548 Controlpanel ComAp Nano 018373
Heat conduction plate for chassis 923669 Pole reversing switch 018374
Emergency power change-over MNU 3ph. (ext.) 988332 ATS control panel nano external 018375
Blackout-Control BLC (extern) 988278 4)6) Remote start (only with ComAp nano) 018377
Waterproof sockets 903097 6) T-valve for external fueling 018339
Fuel extraction device 915230 Can fueling set 988530
Option Economic 018338

6) Installation only factory-made possible 8) n/a in conjunction with GW 308 or isometer 35
7) only in conjunction with assembly kit 9) n/a in conjunction with GW 308 or FI protection switch
