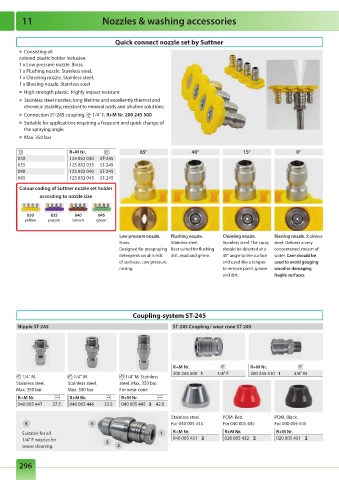

Page 297 - RM_2022

11 Nozzles & washing accessories

Quick connect nozzle set by Suttner
» Consisting of:
colored plastic holder inclusive:
1 x Low pressure nozzle. Brass,
1 x Flushing nozzle. Stainless steel,
1 x Chiseling nozzle. Stainless steel,
1 x Blasting nozzle. Stainless steel
» High strength plastic. Highly impact resistant
» Stainless steel nozzles: long lifetime and excellently thermal and
chemical stability, resistant to mineral acids and alkaline solutions.
» Connection ST-245 coupling, 1/4" F, R+M Nr. 200 245 500
» Suitable for applications requiring a frequent and quick change of
the spraying angle
» Max. 350 bar

R+M Nr. 65° 40° 15° 0°
030 125 852 030 ST-245
035 125 852 035 ST-245
040 125 852 040 ST-245
045 125 852 045 ST-245
Colour coding of Suttner nozzle set holder
according to nozzle size

030 035 040 045
yellow purple brown green

Low pressure nozzle. Flushing nozzle. Chiseling nozzle. Blasting nozzle. Stainless
Brass. Stainless steel. Stainless steel. The spray steel. Delivers a very
Designed for prespraying Best suited for flushing should be directed at a concentrated stream of
detergents on all kinds dirt, mud and grime. 45° angle to the surface water. Care should be
of surfaces. Low pressure and used like a scraper used to avoid gouging
rinsing. to remove paint, grease wood or damaging
and dirt. fragile surfaces.

Coupling-system ST-245
Nipple ST-245 ST-245 Coupling / wear cone ST-245

R+M Nr. R+M Nr.
200 245 500 1 1/4" F 200 245 510 1 3/8" M
1/4" M. 1/4" M. 1/4" M. Stainless
Stainless steel. Stainless steel. steel. Max. 350 bar.
Max. 350 bar Max. 350 bar For wear cone
R+M Nr. R+M Nr. R+M Nr.
040 005 447 27.5 040 005 446 33.5 040 005 445 3 42.0

Stainless steel. POM. Red. POM. Black.
4 4 For 040 005 445 For 040 005 445 For 040 005 445
Suitable for all 1 R+M Nr. R+M Nr. R+M Nr.
1/4" F nozzles for 040 005 431 2 020 005 432 2 020 005 431 2
3
sewer cleaning. 2
