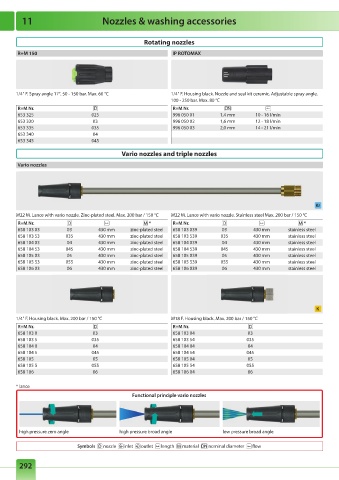

Page 293 - RM_2022

11 Nozzles & washing accessories

Rotating nozzles
R+M 150 IP ROTOMAX

1/4" F. Spray angle 17°. 50 - 150 bar. Max. 60 °C 1/4" F. Housing black. Nozzle and seal kit ceramic. Adjustable spray angle.
100 - 250 bar. Max. 80 °C
R+M Nr. R+M Nr.
653 325 025 996 050 01 1,4 mm 10 - 16 l/min
653 330 03 996 050 02 1,6 mm 12 - 18 l/min
653 335 035 996 050 03 2,0 mm 14 - 21 l/min
653 340 04
653 345 045

Vario nozzles and triple nozzles

Vario nozzles

Kr
M22 M. Lance with vario nozzle. Zinc-plated steel. Max. 200 bar / 150 °C M22 M. Lance with vario nozzle. Stainless steel Max. 200 bar / 150 °C
R+M Nr. * R+M Nr. *
658 103 03 03 430 mm zinc-plated steel 658 103 039 03 430 mm stainless steel
658 103 53 035 430 mm zinc-plated steel 658 103 539 035 430 mm stainless steel
658 104 03 04 430 mm zinc-plated steel 658 104 039 04 430 mm stainless steel
658 104 53 045 430 mm zinc-plated steel 658 104 539 045 430 mm stainless steel
658 105 03 05 430 mm zinc-plated steel 658 105 039 05 430 mm stainless steel
658 105 53 055 430 mm zinc-plated steel 658 105 539 055 430 mm stainless steel
658 106 03 06 430 mm zinc-plated steel 658 106 039 06 430 mm stainless steel

K
1/4" F. Housing black. Max. 200 bar / 150 °C M18 F. Housing black. Max. 200 bar / 150 °C
R+M Nr. R+M Nr.
658 103 0 03 658 103 04 03
658 103 5 035 658 103 54 035
658 104 0 04 658 104 04 04
658 104 5 045 658 104 54 045
658 105 05 658 105 04 05
658 105 5 055 658 105 54 055
658 106 06 658 106 04 06

* lance
Functional principle vario nozzles

high pressure zero angle high pressure broad angle low pressure broad angle

Symbols nozzle inlet outlet length material nominal diameter flow

292
