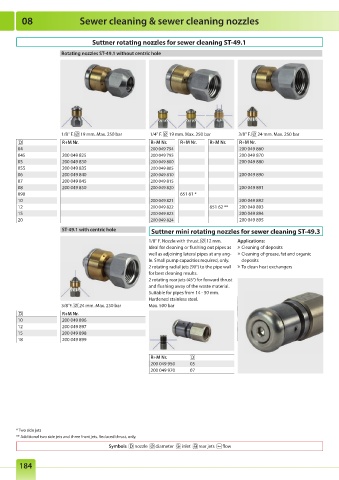

Page 185 - RM_2022

08 Sewer cleaning & sewer cleaning nozzles

Suttner rotating nozzles for sewer cleaning ST-49.1
Rotating nozzles ST-49.1 without centric hole

1/8" F. 19 mm. Max. 250 bar 1/4" F. 19 mm. Max. 250 bar 3/8" F. 24 mm. Max. 250 bar
R+M Nr. R+M Nr. R+M Nr. R+M Nr. R+M Nr.
04 200 049 794 200 049 860
045 200 049 825 200 049 795 200 049 870
05 200 049 830 200 049 800 200 049 880
055 200 049 835 200 049 805
06 200 049 840 200 049 810 200 049 890
07 200 049 845 200 049 815
08 200 049 850 200 049 820 200 049 891
090 651 61 *
10 200 049 821 200 049 892
12 200 049 822 651 62 ** 200 049 893
15 200 049 823 200 049 894
20 200 049 824 200 049 895
ST-49.1 with centric hole Suttner mini rotating nozzles for sewer cleaning ST-49.3
1/8“ F. Nozzle with thrust. 12 mm. Applications:
Ideal for cleaning or flushing out pipes as » Cleaning of deposits
well as adjoining lateral pipes at any ang- » Cleaning of grease, fat and organic
le. Small pump capacities required, only. deposits
2 rotating radial jets (90°) to the pipe wall » To clean heat exchangers
for best cleaning results.
2 rotating rear jets (45°) for forward thrust
and flushing away of the waste material.
Suitable for pipes from 14 - 50 mm.
Hardened stainless steel.
3/8"F. 24 mm. Max. 250 bar Max. 500 bar
R+M Nr.
10 200 049 896
12 200 049 897
15 200 049 898
18 200 049 899

R+M Nr.
200 049 950 05
200 049 970 07

* Two side jets
** Additional two side jets and three front jets. Reduced thrust, only.
Symbols nozzle diameter inlet rear jets flow
