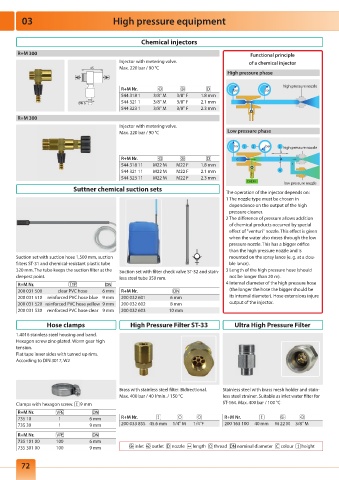

Page 73 - RM_2022

03 High pressure equipment

Chemical injectors
R+M 300 Functional principle
Injector with metering valve. of a chemical injector
45 Max. 220 bar / 90 °C
High pressure phase
high pressure nozzle
R+M Nr. bar bar
544 318 1 3/8" M 3/8" F 1.8 mm
DN 6 544 321 1 3/8" M 3/8" F 2.1 mm
544 323 1 3/8" M 3/8" F 2.3 mm
R+M 300
Injector with metering valve.
Max. 220 bar / 90 °C Low pressure phase

bar 1 2 bar 3 high pressure nozzle
L
R+M Nr. Q ø
544 318 11 M22 M M22 F 1.8 mm
544 321 11 M22 M M22 F 2.1 mm 4
544 323 11 M22 M M22 F 2.3 mm
CHEM
low pressure nozzle
Suttner chemical suction sets
The operation of the injector depends on:
1 The nozzle type must be chosen in
dependence on the output of the high
pressure cleaner.
2 The difference of pressure allows addition
of chemical products occurred by special
effect of "venturi" nozzle. This effect is given
when the water also rinses through the low
pressure nozzle. This has a bigger orifice
than the high pressure nozzle and is
Suction set with suction hose 1,500 mm, suction mounted on the spray lance (e. g. at a dou-
filters ST-31 and chemical-resistant plastic tube ble lance).
320 mm. The tube keeps the suction filter at the Suction set with filter check valve ST-32 and stain- 3 Length of the high pressure hose (should
deepest point. less steel tube 350 mm. not be longer than 20 m).
R+M Nr. 4 Internal diameter of the high pressure hose
200 031 500 clear PVC hose 6 mm R+M Nr. (the longer the hose the bigger should be
200 031 510 reinforced PVC hose blue 9 mm 200 032 601 6 mm its internal diameter). Hose extensions injure
200 031 520 reinforced PVC hose yellow 9 mm 200 032 602 8 mm output of the injector.
200 031 530 reinforced PVC hose clear 9 mm 200 032 603 10 mm

Hose clamps High Pressure Filter ST-33 Ultra High Pressure Filter
1.4016 stainless steel housing and band.
Hexagon screw zinc-plated. Worm gear high
tension.
Flat tape inner sides with turned up rims.
According to DIN 3017, W2

Brass with stainless steel filter. Bidirectional. Stainless steel with brass mesh holder and stain-
Max. 400 bar / 40 l/min. / 150 °C less steel strainer. Suitable as inlet water filter for
Clamps with hexagon screw. 9 mm ST-164. Max. 400 bar / 100 °C
R+M Nr.
735 10 1 6 mm R+M Nr. R+M Nr.
735 30 1 9 mm 200 033 855 45.6 mm 1/4" M 1/4"F 200 163 100 40 mm M 22 M 3/8" M
R+M Nr.
735 101 00 100 6 mm
735 301 00 100 9 mm inlet outlet nozzle length thread nominal diameter colour height
