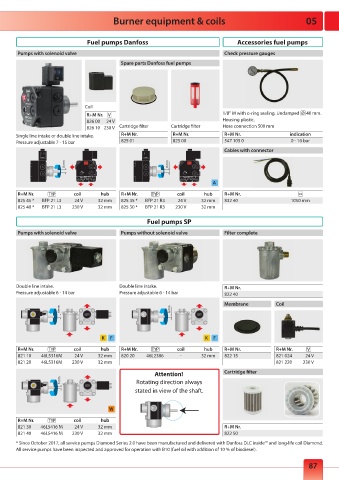

Burner equipment & coils 05

Fuel pumps Danfoss Accessories fuel pumps
Pumps with solenoid valve Check pressure gauges
Spare parts Danfoss fuel pumps

Coil
R+M Nr. 1/8" M with o-ring sealing. Undamped 40 mm.
826 00 24 V Housing plastic.
826 10 230 V Cartridge filter Cartridge filter Hose connection 500 mm
Single line intake or double line intake. R+M Nr. R+M Nr. R+M Nr. indication
Pressure adjustable 7 - 15 bar 825 01 825 00 547 105 0 0 - 16 bar
Cables with connector

8 mm 8 mm

A
R+M Nr. coil hub R+M Nr. coil hub R+M Nr.
825 45 * BFP 21 L3 24 V 32 mm 825 35 * BFP 21 R3 24 V 32 mm 832 40 1050 mm
825 40 * BFP 21 L3 230 V 32 mm 825 30 * BFP 21 R3 230 V 32 mm

Fuel pumps SP

Pumps with solenoid valve Pumps without solenoid valve Filter complete

Double line intake. Double line intake. R+M Nr.
Pressure adjustable 6 - 14 bar Pressure adjustable 6 - 14 bar 822 40
Membrane Coil
6 mm 6 mm

K F K F
R+M Nr. coil hub R+M Nr. coil hub R+M Nr. R+M Nr.
821 10 46L5316M 24 V 32 mm 820 20 46L2386 - 32 mm 822 15 821 024 24 V
821 20 46L5316M 230 V 32 mm 821 220 230 V

Attention! Cartridge filter
6 mm Rotating direction always
stated in view of the shaft.

W

R+M Nr. coil hub
821 30 46L5416 M 24 V 32 mm R+M Nr.
821 40 46L5416 M 230 V 32 mm 822 50

* Since October 2017, all service pumps Diamond Series 2.0 have been manufactured and delivered with Danfoss DLC inside™ and long-life coil Diamond.
All service pumps have been inspected and approved for operation with B10 (fuel oil with addition of 10 % of biodiesel).
