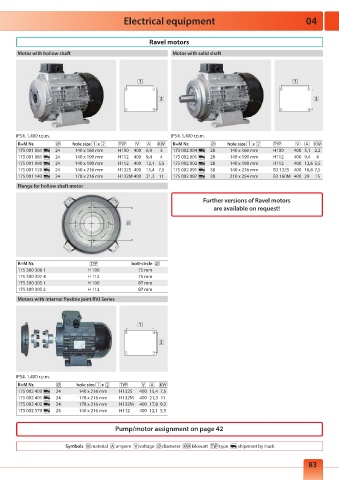

Electrical equipment 04

Ravel motors
Motor with hollow shaft Motor with solid shaft

IP54. 1,400 r.p.m. IP54. 1,400 r.p.m.
R+M Nr. hole size x R+M Nr. hole size x
175 001 061 24 140 x 160 mm H100 400 6,9 3 175 002 004 28 140 x 160 mm H100 400 5,1 2,2
175 001 081 24 140 x 190 mm H112 400 9,4 4 175 002 001 28 140 x 190 mm H112 400 9,4 4
175 001 090 24 140 x 190 mm H112 400 12,1 5,5 175 002 002 28 140 x 190 mm H112 400 12,6 5,5
175 001 120 24 140 x 216 mm H132S 400 15,4 7,5 175 002 091 38 140 x 216 mm B3 132S 400 16,8 7,5
175 001 143 24 178 x 216 mm H132M 400 21,3 11 175 002 087 38 210 x 254 mm B3 160M 400 29 15
Flange for hollow shaft motor

Further versions of Ravel motors
are available on request!

R+M Nr. bolt-circle
175 300 306 1 H 100 75 mm
175 300 307 4 H 112 75 mm
175 300 305 1 H 100 87 mm
175 300 305 2 H 112 87 mm
Motors with internal flexible joint RVJ Series

IP54. 1,400 r.p.m.
R+M Nr. hole size x
175 002 400 24 140 x 216 mm H132S 400 15,4 7,5
175 002 401 24 178 x 216 mm H132M 400 21,3 11
175 002 402 24 178 x 216 mm H132M 400 17,8 9,2
175 002 570 24 140 x 216 mm H112 400 12,1 5,5

Pump/motor assignment on page 42

Symbols material ampere voltage diameter kilowatt type shipment by truck
