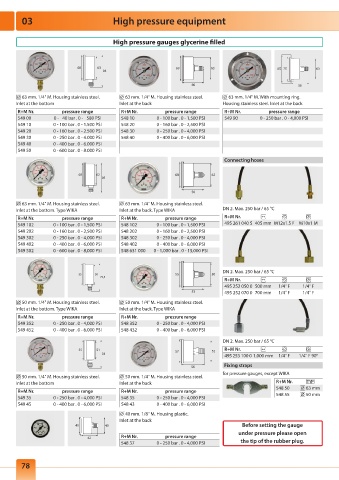

Page 79 - RM_2022

03 High pressure equipment

High pressure gauges glycerine filled

69 63 85 75 63
93

60 50

63 mm. 1/4" M. Housing stainless steel. 63 mm. 1/4" M. Housing stainless steel. 63 mm. 1/4" M. With mounting ring.
Inlet at the bottom Inlet at the back Housing stainless steel. Inlet at the back
R+M Nr. pressure range R+M Nr. pressure range R+M Nr. pressure range
549 00 0 - 40 bar . 0 - 580 PSI 548 10 0 - 100 bar . 0 - 1,500 PSI 549 90 0 - 250 bar . 0 - 4,000 PSI
549 10 0 - 100 bar . 0 - 1.500 PSI 548 20 0 - 160 bar . 0 - 2,500 PSI
549 20 0 - 160 bar . 0 - 2.500 PSI 548 30 0 - 250 bar . 0 - 4,000 PSI
549 30 0 - 250 bar . 0 - 4.000 PSI 548 40 0 - 400 bar . 0 - 6,000 PSI
549 40 0 - 400 bar . 0 - 6.000 PSI
549 50 0 - 600 bar . 0 - 8.000 PSI

Connecting hoses

68 62 68 62
85

56
63 mm. 1/4" M. Housing stainless steel. 63 mm. 1/4" M. Housing stainless steel.
Inlet at the bottom. Type WIKA Inlet at the back. Type WIKA DN 2. Max. 250 bar / 65 °C
R+M Nr. pressure range R+M Nr. pressure range R+M Nr.
549 102 0 - 100 bar . 0 - 1,500 PSI 548 102 0 - 100 bar . 0 - 1,500 PSI 495 261 040 5 405 mm M12x1.5 F M10x1 M
549 202 0 - 160 bar . 0 - 2,500 PSI 548 202 0 - 160 bar . 0 - 2,500 PSI
549 302 0 - 250 bar . 0 - 4,000 PSI 548 302 0 - 250 bar . 0 - 4,000 PSI
549 402 0 - 400 bar . 0 - 6,000 PSI 548 402 0 - 400 bar . 0 - 6,000 PSI
549 502 0 - 600 bar . 0 - 8,000 PSI 548 631 000 0 - 1,000 bar . 0 - 15,000 PSI

DN 2. Max. 250 bar / 65 °C
55 50 55 50
75,5
R+M Nr.
495 252 050 0 500 mm 1/4" F 1/4" F
55 495 252 070 0 700 mm 1/4" F 1/4" F
50 mm. 1/4" M. Housing stainless steel. 50 mm. 1/4" M. Housing stainless steel.
Inlet at the bottom. Type WIKA Inlet at the back. Type WIKA
R+M Nr. pressure range R+M Nr. pressure range
549 352 0 - 250 bar . 0 - 4,000 PSI 548 352 0 - 250 bar . 0 - 4,000 PSI
549 452 0 - 400 bar . 0 - 6,000 PSI 548 432 0 - 400 bar . 0 - 6,000 PSI
DN 2. Max. 250 bar / 65 °C
55 51 57 52 R+M Nr.
78 495 253 100 0 1,000 mm 1/4" F 1/4" F 90°

56 Fixing straps
for pressure gauges, except WIKA
50 mm. 1/4" M. Housing stainless steel. 50 mm. 1/4" M. Housing stainless steel.
Inlet at the bottom Inlet at the back R+M Nr.
548 50 63 mm
R+M Nr. pressure range R+M Nr. pressure range
548 55 50 mm
549 35 0 - 250 bar . 0 - 4,000 PSI 548 35 0 - 250 bar . 0 - 4,000 PSI
549 45 0 - 400 bar . 0 - 6,000 PSI 548 43 0 - 400 bar . 0 - 6,000 PSI
40 mm. 1/8" M. Housing plastic.
Inlet at the back
41 40 Before setting the gauge
under pressure please open
42 R+M Nr. pressure range
548 37 0 - 250 bar . 0 - 4,000 PSI the tip of the rubber plug.

78
