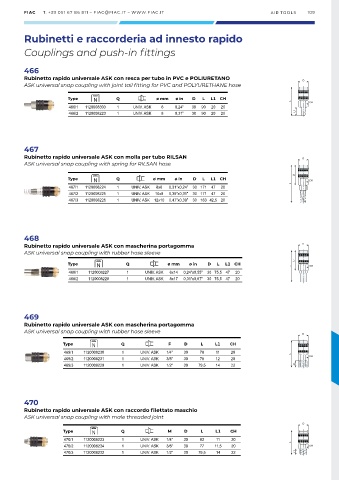

Page 111 - Kolvkompressorer_2022

FIAC T. +39 051 67 86 811 – FIAC@FIAC.IT – WWW.FIAC.IT AIR TOOLS 109

Rubinetti e raccorderia ad innesto rapido

Couplings and push-in fittings

466
Rubinetto rapido universale ASK con resca per tubo in PVC e POLIURETANO D
ASK universal snap coupling with joint tail fitting for PVC and POLYURETHANE hose

Type Q ø mm ø in D L L1 CH
L
CH
466/1 1120008303 1 UNIV. ASK 6 0,24” 30 90 20 20
466/2 1120008223 1 UNIV. ASK 8 0,31” 30 90 20 20 L1

467
Rubinetto rapido universale ASK con molla per tubo RILSAN D
ASK universal snap coupling with spring for RILSAN hose

L1
Type Q ø mm ø in D L L1 CH CH
L
467/1 1120008224 1 UNIV. ASK 8x6 0,31”x0,24” 30 171 47 20
467/2 1120008225 1 UNIV. ASK 10x8 0,39”x0,31” 30 171 47 20
467/3 1120008226 1 UNIV. ASK 12x10 0,47”x0,39” 30 183 42,5 20

468
Rubinetto rapido universale ASK con mascherina portagomma D
ASK universal snap coupling with rubber hose sleeve
L1
Type Q ø mm ø in D L L1 CH
L CH
468/1 1120008227 1 UNIV. ASK 6x14 0,24”x0,55” 30 75,5 47 20
468/2 1120008228 1 UNIV. ASK 8x17 0,31”x0,67” 30 75,5 47 20

469
Rubinetto rapido universale ASK con mascherina portagomma
ASK universal snap coupling with rubber hose sleeve
D
Type Q F D L L1 CH
469/1 1120008230 1 UNIV. ASK 1/4” 30 78 11 20 L
469/2 1120008231 1 UNIV. ASK 3/8” 30 78 12 20 CH
469/3 1120008229 1 UNIV. ASK 1/2” 30 79,5 14 22 L1

470
Rubinetto rapido universale ASK con raccordo filettato maschio
ASK universal snap coupling with male threaded joint
D
Type Q M D L L1 CH
470/1 1120008233 1 UNIV. ASK 1/4” 30 83 11 20
L
470/2 1120008234 1 UNIV. ASK 3/8” 30 77 11,5 20 CH
470/3 1120008232 1 UNIV. ASK 1/2” 30 79,5 14 22 L1
